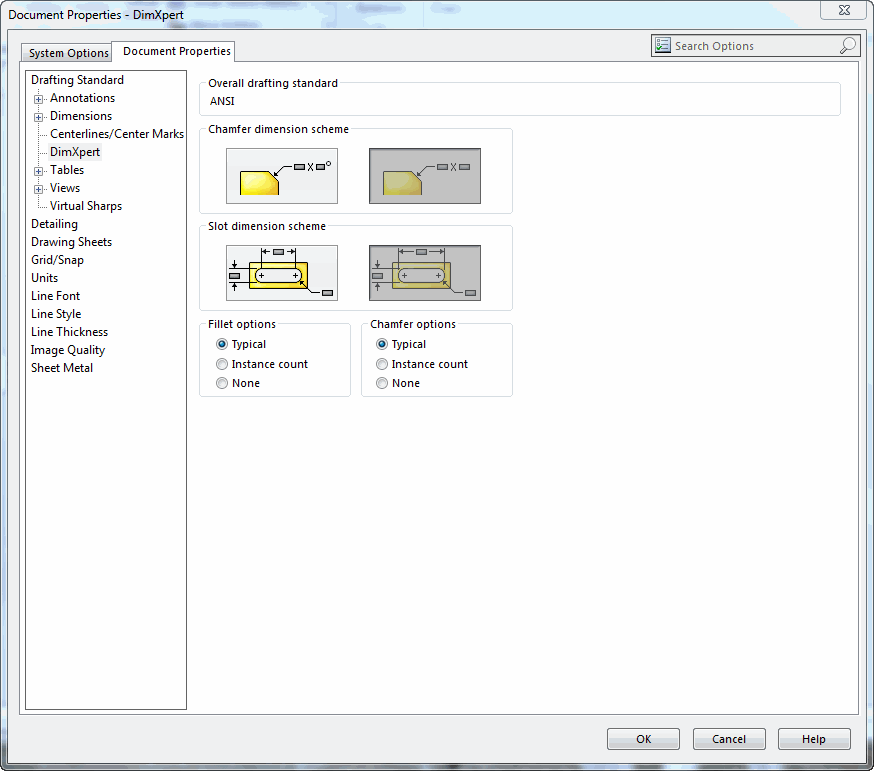

Document Properties > DimXpert

Setting	Get/Set Methods	Return Value or <Value>	Comments
Chamfer dimension scheme	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertChamferScheme, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertChamferScheme, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingDimXpertChamferStyle_e.<Value>)	See swDetailingDimXpertChamferStyle_e for valid options	Specifies chamfer dimension scheme
Slot dimension scheme	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertSlotScheme, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertSlotScheme, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingDimXpertSlotStyle_e.<Value>)	See swDetailingDimXpertSlotStyle_e for valid options	Specifies slot dimension scheme
Fillet options	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertFilletOptions, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertFilletOptions, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingDimXpertFilletInstanceStyle_e.<Value>)	See swDetailingDimXpertFilletInstanceStyle_e for valid options	Specifies fillet options
Chamfer options	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertChamferOptions, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimXpertChamferOptions, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swDetailingDimXpertChamferInstanceStyle_e.<Value>)	See swDetailingDimXpertChamferInstanceStyle_e for valid options	Specifies chamfer options
