Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|

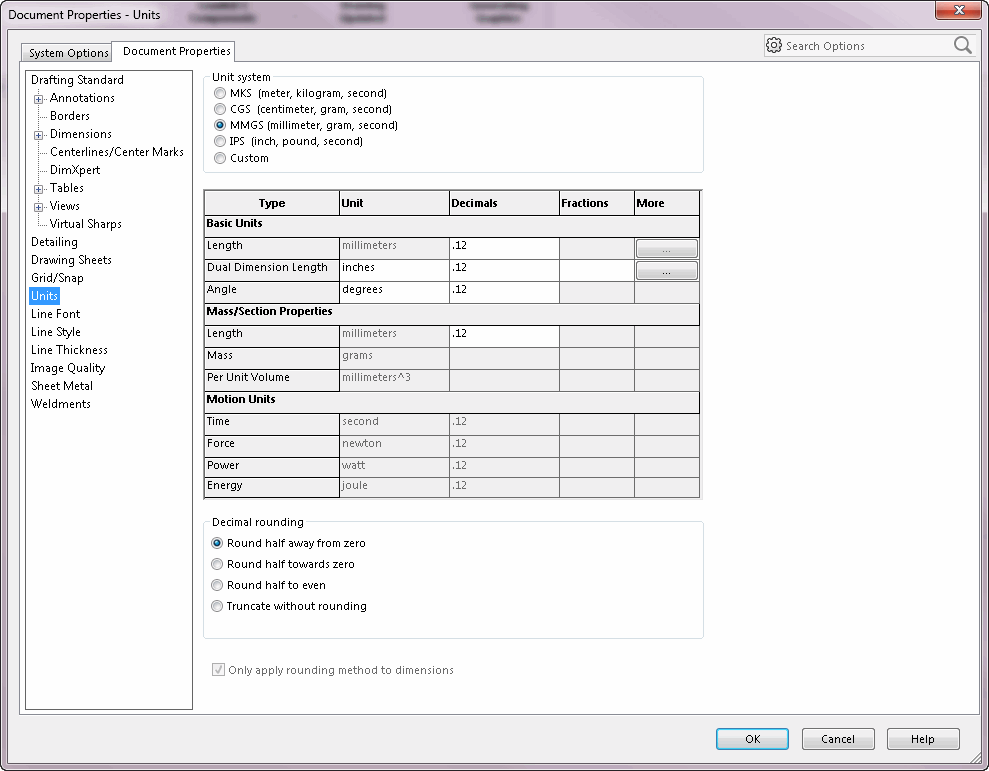

Unit system |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitSystem,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitSystem,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swUnitSystem_e.<Value>) |
See
swUnitSystem_e
for valid options |
Specifies type of system unit |
|
Basic Units - Length - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsLinear,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsLinear,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLengthUnit_e.<Value>) |
See swLengthUnit_e
for valid options |
Specifies the type of linear length units |
|
Basic Units - Length - Decimals or fractions? |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsLinearDecimalDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsLinearDecimalDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swFractionDisplay_e.<Value>) |
See swFractionDisplay_e
for valid options |
Specifies decimal or fraction display for linear units |
|
Basic Units - Length - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsLinearDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsLinearDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value (0 - 8) |
Specifies the number of decimal places for linear units |
|
Basic Units - Length - Fractions |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsLinearFractionDenominator,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsLinearFractionDenominator,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value |
Specifies the default denominator for linear fractions |
|
Basic Units - Length - More - Convert feet
and inches format |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsLinearFeetAndInchesFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsLinearFeetAndInchesFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to change format of linear feet and inches |
|
Basic Units - Length - More - Round to nearest fraction |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsLinearRoundToNearestFraction,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsLinearRoundToNearestFraction,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to round linear units to the nearest fraction |
|
Basic Units - Dual Dimension Length - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDualLinear,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDualLinear,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLengthUnit_e.<Value>) |
See swLengthUnit_e
for valid options |
Specifies type of dual linear length units |
|
Basic Units - Dual Dimension Length - Decimals or fractions? |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDualLinearDecimalDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDualLinearDecimalDisplay,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swFractionDisplay_e.<Value>) |
See swFractionDisplay_e
for valid options |
Specifies decimal or fraction display for dual linear units |
|
Basic Units - Dual Dimension Length - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDualLinearDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDualLinearDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value (0 - 8) |
Specifies the number of decimal places for dual linear units |
|
Basic Units - Dual Dimension Length - Fractions |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDualLinearFractionDenominator,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDualLinearFractionDenominator,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value |
Specifies the default denominator for dual linear fractions |
|
Basic Units - Dual Dimension Length - More - Round to nearest fraction |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsDualLinearRoundToNearestFraction,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsDualLinearRoundToNearestFraction,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to round dual linear units to the nearest fraction |
|
Basic Units - Dual Dimension Length - More - Convert feet and inches
format |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsDualLinearFeetAndInchesFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsDualLinearFeetAndInchesFormat,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to change format of dual linear feet and inches |
|
Basic Units - Angle - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsAngular,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsAngular,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swAngleUnit_e.<Value>) |
See swAngleUnit_e
for valid options |
Specifies angular units |
|
Basic Units - Angle - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsAngularDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsAngularDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value (0 - 8) |
Specifies the number of decimal places for angular units |
|
Mass/Section Properties - Length - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsMassPropLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsMassPropLength,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swLengthUnit_e<Value>) |
See swLengthUnit_e
for valid options |
Specifies type of length unit to use for mass property units
NOTE: You can only set this option when swUnitSystem_e
is swUnitSytem_Custom; Otherwise, FALSE is returned |
|
Mass/Section Properties - Length - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsMassPropDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsMassPropDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value (0 - 8) |
Specifies number of decimal places for mass property units |
|
Mass/Section Properties - Mass - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsMassPropMass,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsMassPropMass,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swUnitsMassPropMass_e.<Value>) |
See swUnitsMassPropMass_e
for valid options |
Specifies type of mass unit to use for mass property units
NOTE: You can only set this option when swUnitSystem_e
is swUnitSytem_Custom; Otherwise, FALSE is returned |
|
Mass/Section Properties - Per Unit Volume - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsMassPropVolume,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsMassPropVolume,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swUnitsMassPropVolume_e.<Value>) |
See swUnitsMassPropVolume_e
for valid options |
Specifies type of volume unit to use for mass property units
NOTE: You can only set this option when swUnitSystem_e
is swUnitSytem_Custom; Otherwise, FALSE is returned |
|
Motion Analysis - Time - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsTimeUnits,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsTimeUnits,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swUnitsTimeUnit_e.<Value>) |
See swUnitsTimeUnit_e
for valid options |
Specifies the type of time unit.
NOTE: You can only set this option when swUnitSystem_e
is swUnitSytem_Custom; Otherwise, FALSE is returned |
|
Motion Analysis - Time - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsTimeDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsTimeDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value (0 - 8) |
Specifies the number of decimal places for swUnitsTime |
|
Motion Analysis - Force - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsForce,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsForce,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swUnitsForce_e.<Value>) |
See swUnitsForce_e
for valid options |
Specifies the type of force units.
NOTE: You can only set this option when swUnitSystem_e
is swUnitSytem_Custom; Otherwise, FALSE is returned |
|
Motion Analysis - Force - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsForceDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsForceDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value (0 - 8) |
Specifies the number of decimal places for swUnitsForce |
|
Motion Analysis - Power - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsPowerUnits,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsPowerUnits,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swUnitsPowerUnit_e.<Value>) |
See swUnitsPowerUnit_e
for valid options |
Specifies type of power unit.
NOTE: You can only set this option when swUnitSystem_e
is swUnitSytem_Custom; Otherwise, FALSE is returned |
|
Motion Analysis - Power - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsPowerDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsPowerDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value (0 - 8) |
Specifies the number of decimal places for swUnitsPower |
|
Motion Analysis - Energy - Unit |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsEnergyUnits,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsEnergyUnits,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swUnitsEnergyUnit_e.<Value>) |
See swUnitsEnergyUnit_e
for valid options |
Specifies the type of energy units.
NOTE: You can only set this option when swUnitSystem_e
is swUnitSytem_Custom; Otherwise, FALSE is returned |
|
Motion Analysis - Energy - Decimals |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsEnergyDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swUnitsEnergyDecimalPlaces,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value (0 - 8) |
Specifies the number of decimal places for swUnitsEnergy |
Decimal rounding -
- Round half away from zero
- Round half towards zero
- Round half to even
- Truncate without rounding
|
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDecimalRounding,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swUnitsDecimalRounding,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, swUnitsDecimalRounding_e.<Value>) |
See
swUnitsDecimalRounding_e for valid options |
Specifies decimal rounding method |
Only apply rounding method to dimensions |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingNoDimSpecificOptionSpecified,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingNoDimSpecificOptionSpecified,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Boolean value |
Specifies whether to apply the
specified decimal rounding method to:
- any numeric display where
rounding occurs, including dialogs.
- or -
- dimensions on their tolerances, including dimensions whose values are derived from equations.
NOTE: Check box is not available if
Round half away from zero is selected.
|
