Wire labels

Contextual menu of a wire: Show/hide wire labels

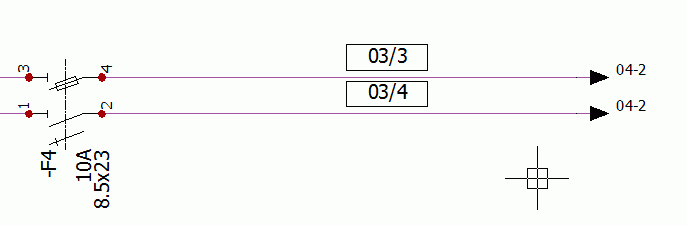

The wire label mainly displays the wire number. Ensure beforehand that wire numbering has been launched.

The wire labels are represented by a symbol and attributes that can display the data or properties associated with the wire.


The wire labels have a contextual menu allowing you to, among other things, edit the wire properties.

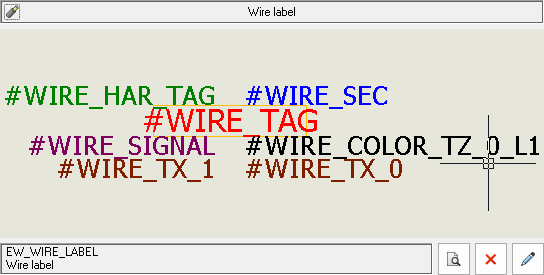

Configuration of the symbol to be used

Electrical project settings: Graphic tab



Opens the symbol selector to select the desired symbol.

Removes the symbol.

Opens the symbol editor to modify it.


Symbols representing wire labels do not have circuits or connection points. In symbol properties, select Wire labels in the Symbol type parameter.
