Set the properties when inserting center marks in drawings. The properties available vary depending on the type of center mark selected.
To display the Center Mark PropertyManager:
In a drawing, click Center Mark
(Annotations toolbar) or .
Style
Defines the center mark style. For details, see Style.
Options
Connection lines
|
Connects the center mark symbols.

|
Circular lines
|
Creates the large circular centerline through the holes in the pattern.

|
Radial lines
|
Creates lines from the pattern's center out to holes in the pattern.

|
Base center mark
|
Adds a center mark to the pattern's center.

|
Manual Insert Options
 |
Single Center Mark |

|
 |
Linear Center Mark |

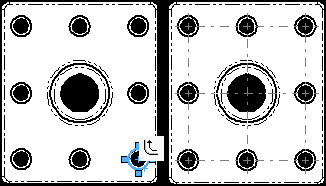

Insert center marks into a linear pattern of circles or arcs. When a linear pattern is recognized, click Propagate to create center marks in all instances of the pattern.
Connection lines. Connects the center mark symbols.
 |
Center marks propagated to a linear pattern |
 |
Linear center marks with connections lines |
|
 |
Circular Center Mark |
Insert center marks into a circular pattern of circles or arcs.
Options
|
|
Slot center mark
|
|
|
Connection lines |
Automatically adds connection lines for new center marks, when possible. |
Display Attributes
Clear Use document defaults to change the following attributes set from Document Properties - Centerlines/ Center Marks.
Mark size
|
Mark size is the length from the center point to an end of the center mark.

|
Extended lines
|
Center points are center marks with Extended lines turned off. You can drag the extended lines to resize them.
 |
 |
Selected |
Cleared |
|
Gap
|
Gap is the distance between the center mark and the extension line. You can change the gap when Scale by view scale in Document Properties - Centerlines/ Center Marks is cleared.
 |
 |
Selected |
Cleared |
|
Centerline font
|
 |
 |
Selected |
Cleared |
|
Angle
|
Angle |
If the center mark is rotated because the view is rotated, the rotation angle appears here. A positive angle rotates the center mark counterclockwise. |
Layer
 |
Layer |
In drawings with named layers, select a layer. |
