Mirror Drawing Views

You can display model, relative to model, and predefined drawing views as mirror views without creating the mirror components. Projected and other derived views use the mirror state from their parent view.

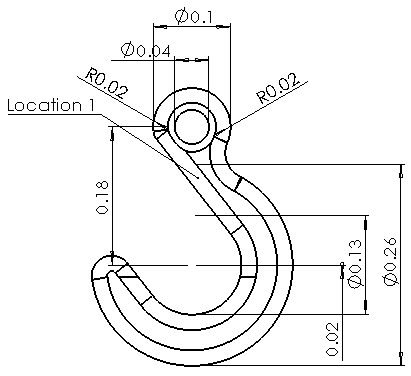

Original view

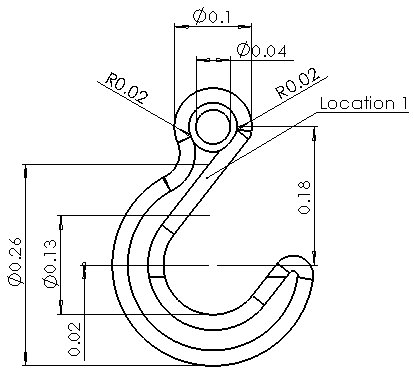

Mirror view

To mirror drawing views:

  1. In a drawing, select a model, relative to model, or predefined drawing view.
  2. In the PropertyManager, under Orientation, select Mirror view.
  3. Under Mirror view, select Horizontal or Vertical.
  4. Click .
