Selecting Configurations from the Context Toolbar

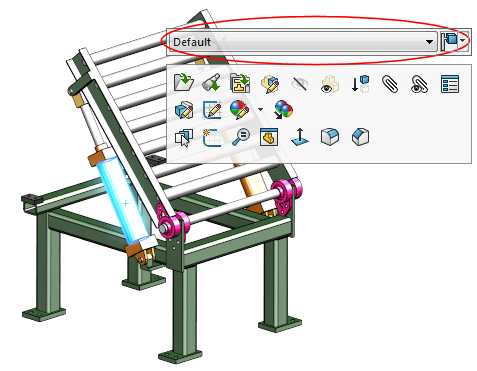

When you select components or subassemblies, a context toolbar appears. When your selection has multiple configurations, you can change the configuration from the context toolbar.

To change the component configuration in an assembly:

  1. Click the component or subassembly.
  2. In the context toolbar, select a configuration from the list at the top.
  3. Click button_Save_Modify.gif.
