User Interface

The Output Viewer tab (formerly the Render tab), is redesigned for a better user experience.

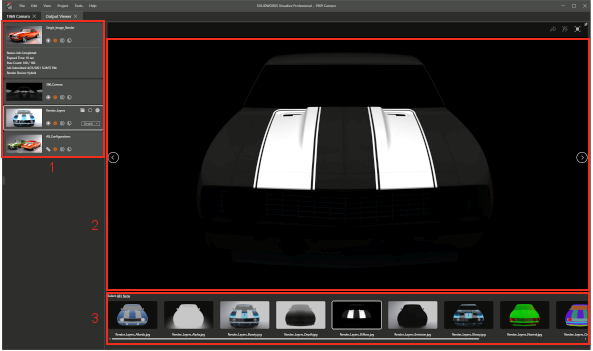

Areas of the Output Viewer tab include:
Area Description

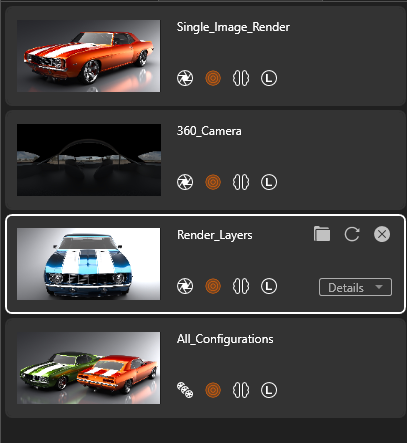

1. Render job palette

 Displays a list of render job submissions. You can:
  • Monitor render progress
  • Pause or save renders
  • Initiate rerenderings
  • Review the Output Tools options for the renders
  • Right-click a render job and click Remove Job
  • Right-click in the render job palette and:
    • Delete unlinked render jobs
    • Sort render jobs
  • Right-click the scroll bar and scroll to various areas

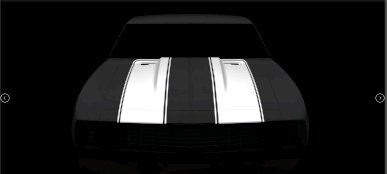

2. Render viewport

 Displays output content being rendered. It also acts as a content viewer where you can see completed render jobs.
In the upper right corner of the render viewport, you can:
  • Publish to 3DSpace .
  • Publish to 3DSwym . Publishes rendered content to 3DSwym.

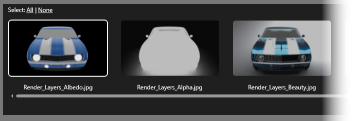

3. Image thumbnails

 Lets you select renderings to open or view in the render viewport.

When you click a thumbnail, the image opens in the render viewport. If you double-click a thumbnail, the image opens in an external viewer.
