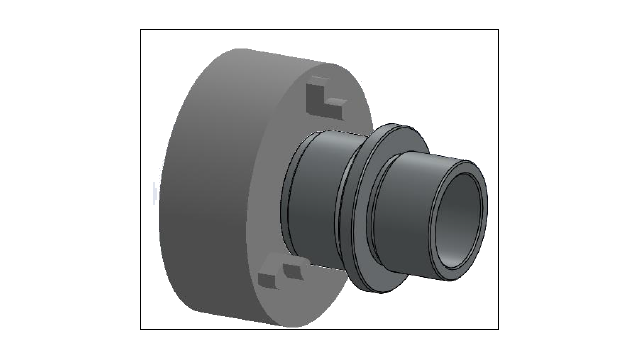

Turn mode
supports assemblies that contain a single Turn part model.
You must define the following:
- In the
Machine tab of the Machine
dialog box,
tthe
Main Spindle Coordinate system for
machining the parts in the
assembly
- Under the Stock Manager node, the
stock for the individual parts that will be listed as subnodes
- In the Manage Parts dialog box,
the turn part,
the spindle designation,
origin
of the coordinate system
and turn
feature section
plane
- In the Spindle work
coordinate
dialog box, the programmable offsets for the main spindle of the machine
