Importing Decals from SOLIDWORKS Files

You can import decals from SOLIDWORKS files to Composer files.

To import decals:

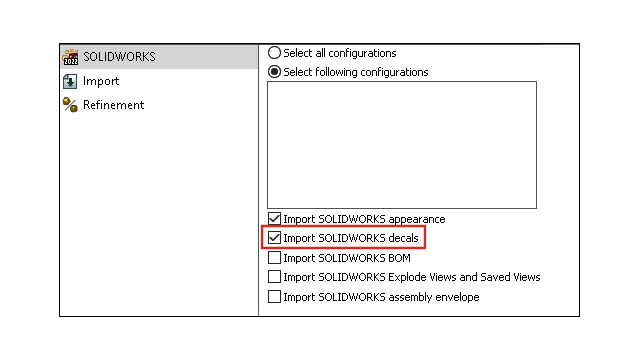

  • In SOLIDWORKS Composer, click File > Open and select a SOLIDWORKS file. Under SOLIDWORKS, select Import SOLIDWORKS decals in the dialog box.
  • In SOLIDWORKS Composer, click File > Properties > Default Document Properties > Advanced Properties. Under INPUT - IMPORT, select IOSWImportDecals. See Managing (Default) Document Properties > Input in Composer Help.
  • In SOLIDWORKS Composer Sync, at the bottom of the window, click More Properties > Advanced Properties. In the dialog box, under INPUT - IMPORT, select Batch.IOSWImportDecals to enable batch import of decals. See Sync > Managing Default Document Properties > Advanced Properties in Composer Help.
