Components Pane

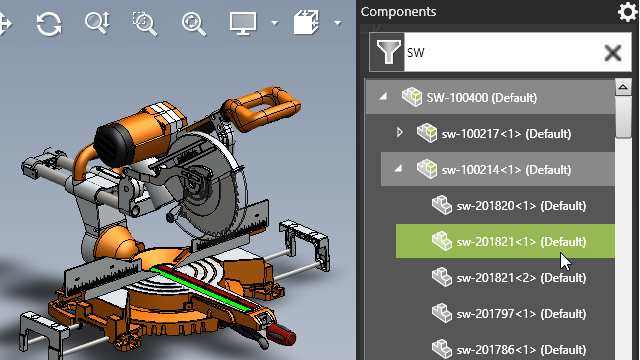

When you work with assemblies in eDrawings, the Components pane is enhanced for ease of use.

Enhancement Description
Options The following are options in the Components pane:
  • Highlight parents on hover. Highlights the parent row when you hover over a child row.
  • Show Component Descriptions. This option has moved from the Options dialog box.
Clear filtered text Clears previously filtered content.
Top-level assembly display Displays the top-level assembly node in the components tree.
Pane height Displays the Components pane at full height to reduce scrolling.
Expand All/Collapse All Expands or collapses all items below the selected assembly node.
