Connection Point Creation Enhancements

Connection points (CPoints) let you connect wires or cables with connectors.

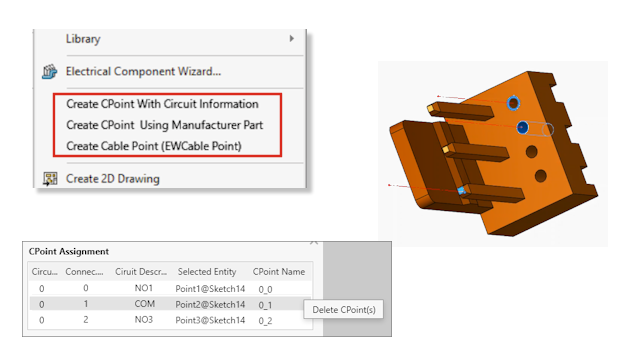

  • Commands to create the CPoints are available in the SOLIDWORKS Electrical menu.
  • You can assign Cpoints by selecting an edge or a cylindrical surface.
  • To delete an assignment in the CPoint Assignment table, right-click the row and select Delete CPoint(s).
