Injection Location Advisor

The Injection Location Advisor assesses a part's geometry to identify up to four suitable injection locations by considering the specified material, process conditions, and mold opening direction.

To open the Injection Location Advisor PropertyManager:

In the PlasticsManager tree, right-click Boundary Conditions and click Injection Location Advisor.

The following table describes the options of the Injection Location Advisor PropertyManager.
Number of locations Specifies the number of the suitable injection locations (maximum of four).
Mold open direction Specifies the plane for the mold open direction. The default is the Front Plane, which corresponds to the positive Z-axis.
Excluded regions Defines regions of a model that the Injection Location Advisor excludes from consideration.

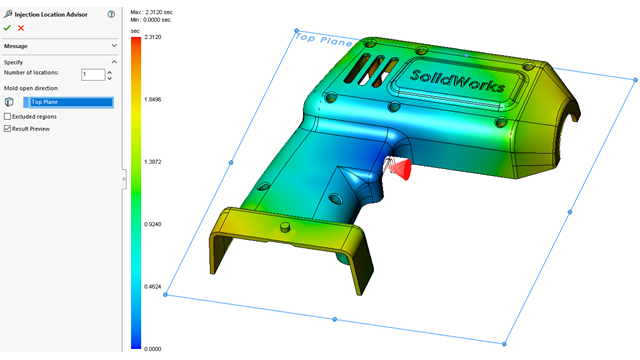

Result Preview Shows the recommended injection locations and a preview of the fill plot. You can predict how the plastic material fills the mold based on the recommended injection locations.
