When
creating geometric tolerance symbols, you can use the handles surrounding the feature
control frame to build the symbol.
To create
geometric tolerance symbols:
-
In a part or
drawing, click Geometric Tolerance
or .
-
In the graphics area, click to place the symbol.

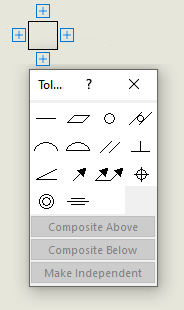

A feature control frame appears with handles and a
Tolerance dialog box surrounding it.
![](yum1617988204047.image)
-
In the dialog box, specify options to add content to the feature control
frame.
![](rmy1617988522455.image)
-
Click any handle surrounding the feature control frame to add more
content.
![](qdc1617989386111.image)
