Batch Update Card Variables Example (C#)
This example shows how to update file and folder card
variables in one batch.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
// a. Click File > New > Project > Visual C# > Windows
Forms Application.
// b. Type BatchUpdateCardVarsCSharp in Name.
// c. Click Browse and navigate to the folder where to
create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer
toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with
this code.
// g. To create the form, replace the code in
Form1.Designer.cs with
// this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference,
click
// Assemblies > Framework in the left-side panel,
browse to the top folder of
// your SOLIDWORKS PDM Professional installation, locate and
click
// EPDM.Interop.epdm.dll, and click
Add).
// 3. Add Microsoft.CSharp as reference (click
// Assemblies > Framework
in the left-side panel, select
// Microsoft.CSharp, and click OK).
// 4. Right-click EPDM.Interop.epdm in References, click Properties,
and set
// Embed Interop Types to False to handle
methods that pass arrays of
// structures.
// 5.
Ensure that at least one text file is
checked out, and at least one folder
// with the word Folder in the name exists in the vault.
// 6. Click Debug > Start Debugging or press F5.
//
// Postconditions:

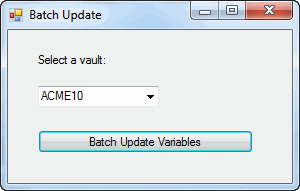

// 1. Displays the Batch Update dialog box.
// a. Select a vault.
// b. Click Batch Update Variables.
// * Updates the Title and Comment
variables in the data cards
// only of checked-out
text files.
// * Updates the Description variable
of the data cards of all folders
// with the word
Folder in
their names.
// * Displays a message box saying
Card variables updated.
// c. Click OK to close the message box.
// 2. Close the Batch Update dialog box.
// 3. Inspect the data cards of any checked-out text files and folders
with
// the word Folder in their names in the selected vault.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace BatchUpdateCardVarsCSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private IEdmVault5 vault1 = null;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault5 vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
private void BatchUpdateButton_Click(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Create a batch update utility
IEdmBatchUpdate2 Update = default(IEdmBatchUpdate2);
Update = (IEdmBatchUpdate2)vault2.CreateUtility(EdmUtility.EdmUtil_BatchUpdate);
//Get the IDs of the file and folder
card variables to update
int TitleID = 0;
int CommentID = 0;
int DescriptionID = 0;
IEdmVariableMgr5 VariableMgr = default(IEdmVariableMgr5);
VariableMgr = (IEdmVariableMgr5)vault1;
TitleID = VariableMgr.GetVariable("Title").ID;
DescriptionID = VariableMgr.GetVariable("Description").ID;
CommentID = VariableMgr.GetVariable("Comment").ID;
//Search for all text files in the
vault
IEdmSearch5 Search = default(IEdmSearch5);
Search = (IEdmSearch5)vault2.CreateUtility(EdmUtility.EdmUtil_Search);
Search.FileName = "%.txt";
IEdmSearchResult5 Result = default(IEdmSearchResult5);
Result = Search.GetFirstResult();
while ((Result != null))
{
Update.SetVar(Result.ID, TitleID, "My Title", "", (int)EdmBatchFlags.EdmBatch_Nothing);
Update.SetVar(Result.ID, CommentID, "My Comment", "", (int)EdmBatchFlags.EdmBatch_Nothing);
Result = Search.GetNextResult();
}
//Search for all folders whose names contain
"Folder" in the vault
Search.FileName = "%Folder%";
Result = Search.GetFirstResult();
while ((Result != null))
{
Update.SetFolderVar(Result.ID, DescriptionID, "My Description", (int)EdmBatchFlags.EdmBatch_Nothing);
Result = Search.GetNextResult();
}
//Write all the card
variable values to the database
EdmBatchError2[] Errors = null;
int errorSize = 0;
errorSize = Update.CommitUpdate(out Errors, null);
//Display any errors
string Msg = null;
Msg = "Card
variables updated.";
string ErrName = null;
string ErrDesc = null;
string FileName = null;
int Lo = 0;
Lo = Errors.GetLowerBound(0);
int Hi = 0;
Hi = Errors.GetUpperBound(0);
IEdmVault9 vault9;
vault9 = (IEdmVault9)vault1;
EdmObjectInfo[] ppoObjects = null;
while (Lo < Hi - 1)
{
ppoObjects[Lo].meType = EdmObjectType.EdmObject_File;
Lo = Lo + 1;
}
vault9.GetObjects(ref ppoObjects);
while (Lo < Hi - 1)
{
if ((Errors[Lo].mlFileID > 0))
{
IEdmFile6 File = default(IEdmFile6);
int ID;
ID = (int)ppoObjects[Lo].moObjectID;
if (ppoObjects[Lo].meType == EdmObjectType.EdmObject_File)
{
if (ID == Errors[Lo].mlFileID)
{
File = (IEdmFile6)ppoObjects[Lo].mpoObject;
FileName = File.Name;
}
}
}
vault1.GetErrorString(Errors[Lo].mlErrorCode, out ErrName, out ErrDesc);
Msg = Msg + "\n" + ErrName + " " + FileName;
Lo = Lo + 1;
}
MessageBox.Show(Msg);
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
Back to top
//Form1.Designer.cs
namespace BatchUpdateCardVarsCSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.BatchUpdateButton = new System.Windows.Forms.Button();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.Label1 = new System.Windows.Forms.Label();
this.SuspendLayout();
//
//BatchUpdateButton
//
this.BatchUpdateButton.Location = new System.Drawing.Point(30, 100);
this.BatchUpdateButton.Name = "BatchUpdateButton";
this.BatchUpdateButton.Size = new System.Drawing.Size(215, 23);
this.BatchUpdateButton.TabIndex = 0;
this.BatchUpdateButton.Text = "Batch Update Variables";
this.BatchUpdateButton.UseVisualStyleBackColor = true;
this.BatchUpdateButton.Click += new System.EventHandler(this.BatchUpdateButton_Click);
//
//VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(30, 56);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 1;
//
//Label1
//
this.Label1.AutoSize = true;
this.Label1.Location = new System.Drawing.Point(27, 23);
this.Label1.Name = "Label1";
this.Label1.Size = new System.Drawing.Size(91, 13);
this.Label1.TabIndex = 2;
this.Label1.Text = "Select vault view:";
//
//Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(284, 153);
this.Controls.Add(this.Label1);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.BatchUpdateButton);
this.Name = "Form1";
this.Text = "Batch Update";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
internal System.Windows.Forms.Button BatchUpdateButton;
internal System.Windows.Forms.ComboBox VaultsComboBox;
internal System.Windows.Forms.Label Label1;
#endregion
}
}
