Setting |
Get/Set Methods |
Return Value
or
<Value>
or
<OnFlag> |
Comment |
|

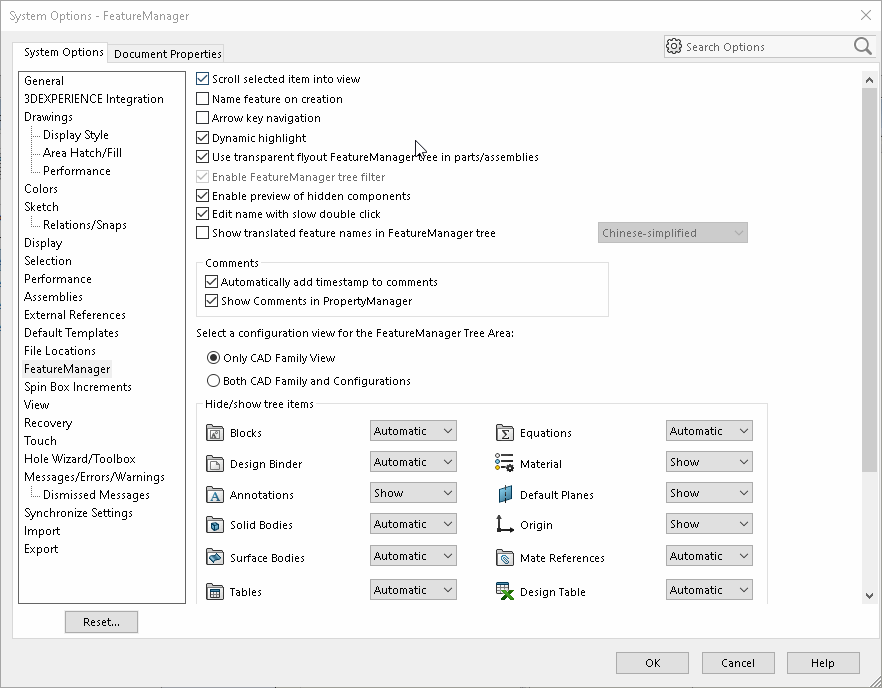

Scroll selected item into view |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnsureVisible)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnsureVisible,
<OnFlag>) |
Boolean value |
Specifies whether FeatureManager design tree should automatically scroll
to display feature icon related to selected items in graphics area |
|
Name feature on creation |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerNameFeatureWhenCreated)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerNameFeatureWhenCreated,
<OnFlag>) |
Boolean value
|
Specifies to automatically select new feature in FeatureManager design
tree to name it |
|
Arrow key navigation |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerKeyboardNavigation)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerKeyboardNavigation,
<OnFlag>) |
Boolean value
|
Specifies whether arrow keys can be used to traverse FeatureManager
design tree, and expand or collapse design tree and its contents |
|
Dynamic highlight |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerDynamicHighlight)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerDynamicHighlight,
<OnFlag>) |
Boolean value
|
Specifies whether geometry in graphics area is highlighted when pointer
passes over item in FeatureManager design tree |
|
Use transparent flyout FeatureManager tree in parts/assemblies |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerTransparentFlyout)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerTransparentFlyout,
<OnFlag>) |
Boolean value
|
Specifies whether to use transparent flyout FeatureManager in part and
assembly documents |
|
Enable FeatureManager tree filter |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnableTreeFilter)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnableTreeFilter,
<OnFlag>) |
Boolean value |
Specifies whether to display the
FeatureManager design tree filter
Unlike the user interface, you can turn this setting on or
off when a model document is open |
Allow component files to be renamed from FeatureManager tree
(Not
supported in SOLIDWORKS Connected) |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnableRenamingComponent)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnableRenamingComponent,
<OnFlag>) |
Boolean value |
Specifies whether to enable renaming components |
|
Enable preview of hidden components |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnablePreviewHiddenComponents)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerEnablePreviewHiddenComponents,
<OnFlag>) |
Boolean value |
Specifies whether to enable preview of hidden components |
|
Edit name with slow double click |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEditNameWithSlowDoubleClick)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEditNameWithSlowDoubleClick,
<OnFlag>) |
Boolean value |
|
|
Show translated feature names in FeatureManager tree |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerShowTranslatedNameInFMTree)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swFeatureManagerShowTranslatedNameInFMTree,
<OnFlag>) |
Boolean value |
|
|
Language drop-down |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerTranslatedLanguage)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerTranslatedLanguage,
swAutoHideShowResponse_e.<Value>)
|
See
swUserPreferencesLanguages_e
for valid options |
Valid only if
swUserPreferenceToggle_e.swFeatureManagerShowTranslatedNameInFMTree is set to
true. |
|
Comments - Automatically add timestamp to comments |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swCollabAddTimeStampToComments)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swCollabAddTimeStampToComments,
<OnFlag>) |
Boolean value |
|
|
Comments - Show Comments in PropertyManager |
ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swCollabShowCommentsInPropertyManager)
ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swCollabShowCommentsInPropertyManager,
<OnFlag>) |
Boolean value |
|
|
Select a configuration view for the FeatureManager Tree Area - Only CAD
Family View or Both CAD Family and Configurations (SOLIDWORKS Connected
only) |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swConfigurationViewForFeatureManagerTree)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swConfigurationViewForFeatureManagerTree,
swFeatureManagerTreeViewCADFamily_e.<Value>)
|
See
swFeatureManagerTreeViewCADFamily_e for valid options |
|
|
Hide/show tree items - Blocks |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerBlocksVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerBlocksVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Design Binder |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDesignBinderVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDesignBinderVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Annotations |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerAnnotationsVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerAnnotationsVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Solid Bodies |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSolidBodiesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSolidBodiesVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Surface Bodies |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSurfaceBodiesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSurfaceBodiesVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
Hide/show tree items - Tables |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerTableFolderVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerTableFolderVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Favorites |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerFavorites)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerFavorites,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
Hide/show tree items - eDrawing Markups
(not supported in SOLIDWORKS
Connected) |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerEDrawingMarkups)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerEDrawingMarkups,
swAutoHideShowResponse_e.<Value>) |
See swAutoHideShowResponse_e
for valid options |
|
Hide/show tree items - Selection Sets |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSelectionSetsVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSelectionSetsVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Equations |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerEquationsVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerEquationsVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Material |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMaterialVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMaterialVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Default Planes |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDefaultPlanesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDefaultPlanesVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Origin |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerOriginVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerOriginVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Mate References |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMateReferencesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMateReferencesVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Design Table |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDesignTableVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerDesignTableVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Sensors |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSensorVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerSensorVisibility,
swAutoHideShowResponse_e.<Value>)
|
See swAutoHideShowResponse_e
for valid options |
|
Hide/show tree items - History |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerHistory)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerHistory,
swAutoHideShowResponse_e.<Value>)
|
See
swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Graphic
Bodies |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMeshBodiesVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMeshBodiesVisibility,
swAutoHideShowResponse_e.<Value>) |
See
swAutoHideShowResponse_e
for valid options |
|
|
Hide/show tree items - Markups |
ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMarkupsVisibility)
ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swFeatureManagerMarkupsVisibility,
swAutoHideShowResponse_e.<Value>) |
See
swAutoHideShowResponse_e
for valid options |
|
