Aligning One Drawing View to Another

To align one drawing view to another:

  1. Do one of the following:
    • Select a drawing view, and click Tools > Align Drawing View > Horizontal To Another View or Vertical To Another View.
    • Right-click a drawing view, select Alignment, then select one of the following options:

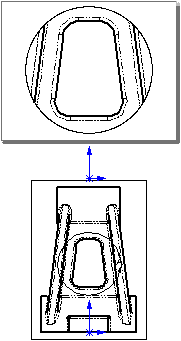

      Align Horizontal by Origin (equivalent to Horizontal To Another View) align_horiz_by_origin.gif

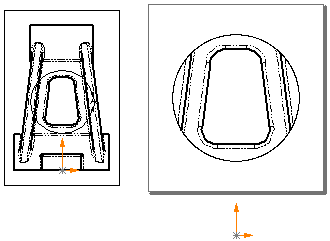

      Align Vertical by Origin (equivalent to Vertical To Another View) align_vert_by_origin.gif

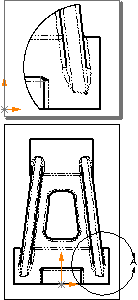

      Align Horizontal by Center align_horiz_by_center.gif

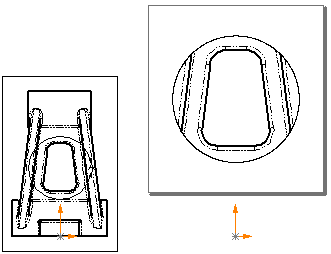

      Align Vertical by Center align_vert_by_center.gif

      The pointer changes to Pointer_Align.gif.

  2. Select the view to which you want to align.
    The model origins or drawing view centers of the views are aligned along the chosen direction. The alignment is maintained if you move the reference view.
