Cooling Channel PropertyManager

To create Simulation-only cooling channel domains, you use one or more sketches that specify the centerline of the channel.

To open the Cooling Channel PropertyManager:

In the PlasticsManager, right-click Domains , and click Cooling Channel.

	Selections	Select sketch lines to define the channel layout.
	Flip Dimension	Reverses the dimensions for the selected cooling channel.

Channel Parameters

	General	Creates a cooling channel by entering the diameters at the two end nodes connected by line elements.

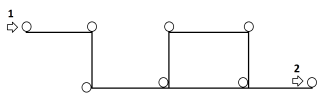

		Schematic representation of a cooling channel layout. 1: Input Node, 2: Output Node
	Baffle	Creates a cooling channel by entering one diameter for the two end nodes. The bottom node connects to the node of a line element, and the top node is isolated.

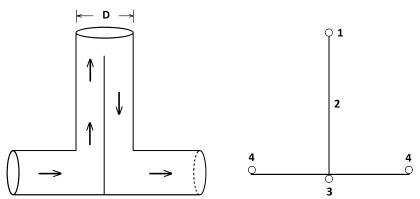

		Schematic representation of a Baffle cooling channel. 1: Top Node, 2: Baffle, 3: Bottom Node, 4: Channel Element
	Bubbler	Creates a cooling channel by entering two diameters (tube cross-section) for the two end nodes. The bottom node connects to the line element and the top node is isolated.

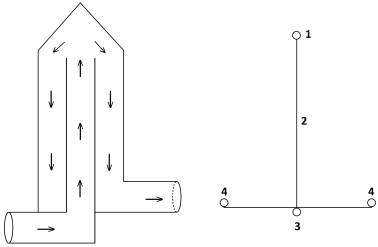

		Schematic representation of a Bubbler cooling channel. 1: Top Node, 2: Bubbler, 3: Bottom Node, and 4: Channel Element
	Flip Inlet	Reverses the inlet direction.
