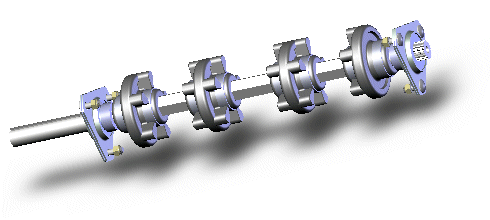

Displays a shadow under the model. When shadows are displayed, the light appears from the top-most part of the model in the current orientation.
When you have shadows enabled, system performance is slower during dynamic view operations (zoom, pan, rotate, and so on).
To turn on shadows, do one of the following:
-
Click and select Shadows in Shaded Mode
.
-
From the Task Pane, Alt
+ drag or Alt + double-click to apply a
scene and open the Edit Scene
PropertyManager. Under Floor, click
Floor shadows.
-
From the DisplayManager, click View
Scene, Lights, and Cameras
. Right-click
Scene and select Edit Scene. Under Floor, click Floor
shadows.
-
In the graphics area, right-click and select Edit Scene. Under Floor, click Floor
shadows.
To change the orientation of the floor, under Align floor with, align the floor with a plane.
