SOLIDWORKS Inspection Manager

The SOLIDWORKS Inspection Manager contains a Characteristics section with tabs for Characteristic Table and Characteristic Tree. If you select an item in the characteristic table or characteristic tree, the corresponding entity highlights in the graphics area.

The characteristic table contains the Bill of Characteristics, which lists each ballooned entity. You can select multiple balloons from the same view and reorder them in the characteristic table.

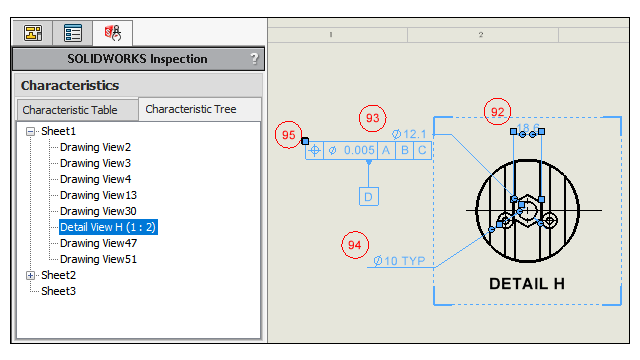

The characteristic tree contains information for each sheet and view in the drawing. It only displays sheets and views that have ballooned items. In the characteristic tree, you can reorder:
  • Balloons by dragging views.
  • Views that belong to the same sheet.
  • Sheets. The sheet and its views are reordered and renumbered according to the new position in the characteristic tree.
