Exporting to 3D PDF

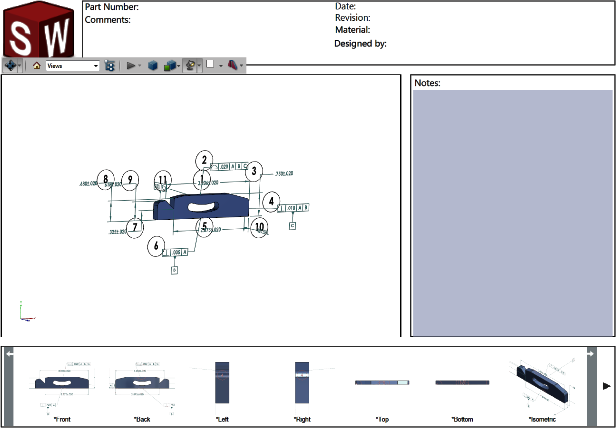

After you balloon the inspection characteristics, you can export the ballooned MBD part or assembly to a 3D PDF.

To export to 3D PDF:

Click Export to 3D PDF (SOLIDWORKS Inspection toolbar).
Specify the file name and location and click Save.

Search 'Exporting to 3D PDF' in the SOLIDWORKS Knowledge Base.
