3D Textures

You can use 3D textures to transform textural appearances on parts into 3D geometry. You can use the resulting graphics body for manufacturing, especially 3D printing, or you can manipulate the geometry further by converting it into a mesh BREP body.

3D textures can add repeating geometric features to models. For example: dimples, knurls, bumps on a shoe tread, and textured patterns on a cell phone case.

Overview of the 3D Texture Process

Original model

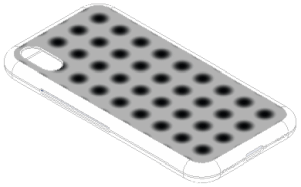

Apply a textural appearance

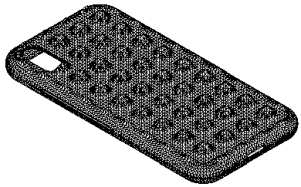

Create a 3D texture using the 2D textural appearance

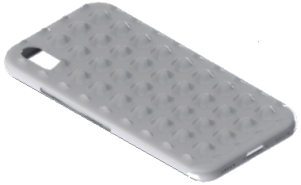

Final model

2D Textural Appearances

You add any type of image as a mapped textural appearance to the model. Grayscale heightmap images are preferred. You then use the 3D Texture PropertyManager to create 3D Texture features that use the grayscale values of the mapped textural appearance to physically displace the geometry.

You can specify white or black as the top of the texture. Each color gives a different 3D texture result. White represents the maximum elevation along an axis, while black represents no elevation. This image depicts black down, then black up.

Use these sliders in the PropertyManager iteratively to create the 3D texture:
  • Texture Refinement

  • Texture Offset Distance

  • Maximum Element Size
