Components Pane (2023 SP1)

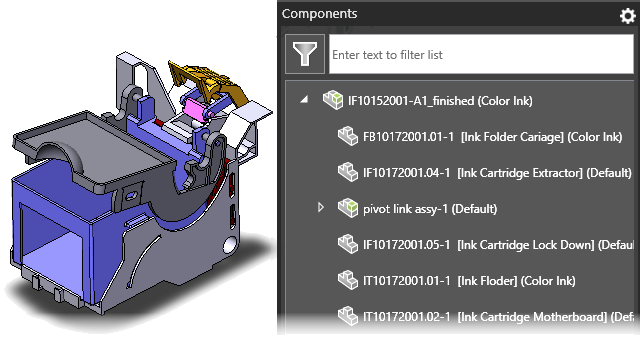

You can display component properties in the assembly tree of the eDrawings Components pane.

Component properties are only available if you published an .EASM file from SOLIDWORKS with Save file properties for each component in the assembly selected.

On the Components pane, click Options and select Show property. This displays the specified property when you open the Components pane. You can also filter on the text to find components in a large assembly tree.
