Get File Variable Data Example (VB.NET)
This example shows how to get the card variable data for
the latest version of a selected file.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
'----------------------------------------------------------------------------
' Preconditions:
' 1. Start Microsoft Visual Studio.
' a. Click File > New > Project > Visual Basic > Windows Forms Application.
' b. Type FileVariableData_VBNET in Name.
' c. Click Browse and navigate to the folder where to create the project.
' d. Click OK.
' e. Click Show All Files in the Solution Explorer toolbar and expand
' Form1.vb in the Solution Explorer.
' f. Replace the code in Form1.vb with this code.
' g. To create the
form, replace the code in Form1.Designer.vb with
' this code.
' 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
' name in the Solution Explorer, click Add Reference, click
' Assemblies > Framework in the left-side panel, browse to the top folder of
' your SOLIDWORKS PDM Professional installation, locate and click
' EPDM.Interop.epdm.dll, click Open, click Add, and click Close).
' 3. Right-click EPDM.Interop.epdm in References, click Properties, and set
' Embed Interop Types to False to handle methods that pass arrays of
' structures.
' 4. Click Debug > Start Debugging or press F5.
'
' Postconditions:

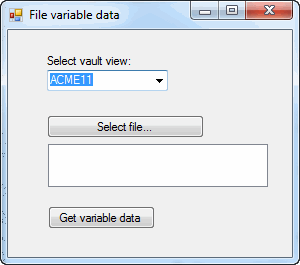

' 1. Displays the File variable data dialog box.
' 2. Select a vault view.
' 3. Click Select file.
' a. In the Select File dialog:
' 1. Click a vault file.
' 2. Click Open.
' 4. Click Get variable data.
' 5. Click OK in the message box.
' 6. Close the File variable data dialog box.
'----------------------------------------------------------------------------
'Form1.vb
Imports System.IO
Imports System.Xml.Serialization
Imports System.Collections
Imports System.Collections.Generic
Imports System.Data
Imports System.Diagnostics
Imports System.Windows.Forms
Imports System.ComponentModel
Imports EPDM.Interop.epdm
Public Class Form1
Private vault1 As IEdmVault5
Dim aFile As IEdmFile7
Dim aFolder As IEdmFolder5
Dim enumVar As IEdmEnumeratorVariable7
Public Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Load
Try
vault1 = New EdmVault5()
Dim vault As IEdmVault10 = DirectCast(vault1, IEdmVault10)
Dim Views As EdmViewInfo() = Nothing
vault.GetVaultViews(Views, False)
VaultsComboBox.Items.Clear()
For Each View As EdmViewInfo In Views
VaultsComboBox.Items.Add(View.mbsVaultName)
Next
If VaultsComboBox.Items.Count > 0 Then
VaultsComboBox.Text = DirectCast(VaultsComboBox.Items(0), String)
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub SelectFile_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles SelectFile.Click
Try
File1List.Items.Clear()
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
'Set the initial directory in the Select File dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath
'Show the Select File dialog
Dim DialogResult As System.Windows.Forms.DialogResult = Nothing
DialogResult = OpenFileDialog1.ShowDialog()
If Not (DialogResult = System.Windows.Forms.DialogResult.OK) Then
' do nothing
Else
For Each FileName As String In OpenFileDialog1.FileNames
File1List.Items.Add(FileName)
aFile = vault1.GetFileFromPath(FileName, aFolder)
Next
End If
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
Public Sub GetVarData_Click(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles GetVarData.Click
Try
If vault1 Is Nothing Then
vault1 = New EdmVault5()
End If
If Not vault1.IsLoggedIn Then
vault1.LoginAuto(VaultsComboBox.Text, Me.Handle.ToInt32())
End If
Dim ppoRetVars() As Object = Nothing
Dim ppoRetConfs() As String = Nothing
Dim poRetDat As EdmGetVarData = Nothing
enumVar = aFile.GetEnumeratorVariable()
enumVar.GetVersionVars(0, aFolder.ID, ppoRetVars, ppoRetConfs, poRetDat)
Dim str As String
str = "File variable data for " & aFile.Name & vbLf
str = str & "Version: " & poRetDat.mlVersion & vbLf
str = str & "Latest version: " & poRetDat.mlLatestVersion & vbLf
str = str & "Revision: " & poRetDat.mbsRevision & vbLf
str = str & "State: " & poRetDat.mbsState & vbLf
str = str & "Workflow: " & poRetDat.mbsWorkflow & vbLf
str = str & "Category: " & poRetDat.mbsCategory & vbLf
str = str & "SQL Server date format code: " & poRetDat.mlDateFmt & vbLf
str = str & "EdmGetVarDataFlags: " & poRetDat.mlEdmGetVarDataFlags
MsgBox(str)
Catch ex As System.Runtime.InteropServices.COMException
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message)
Catch ex As Exception
MessageBox.Show(ex.Message)
End Try
End Sub
End Class
