Setting |
Get/Set Methods |
Return Value or <Value>
or <OnFlag> |
Comments |
|

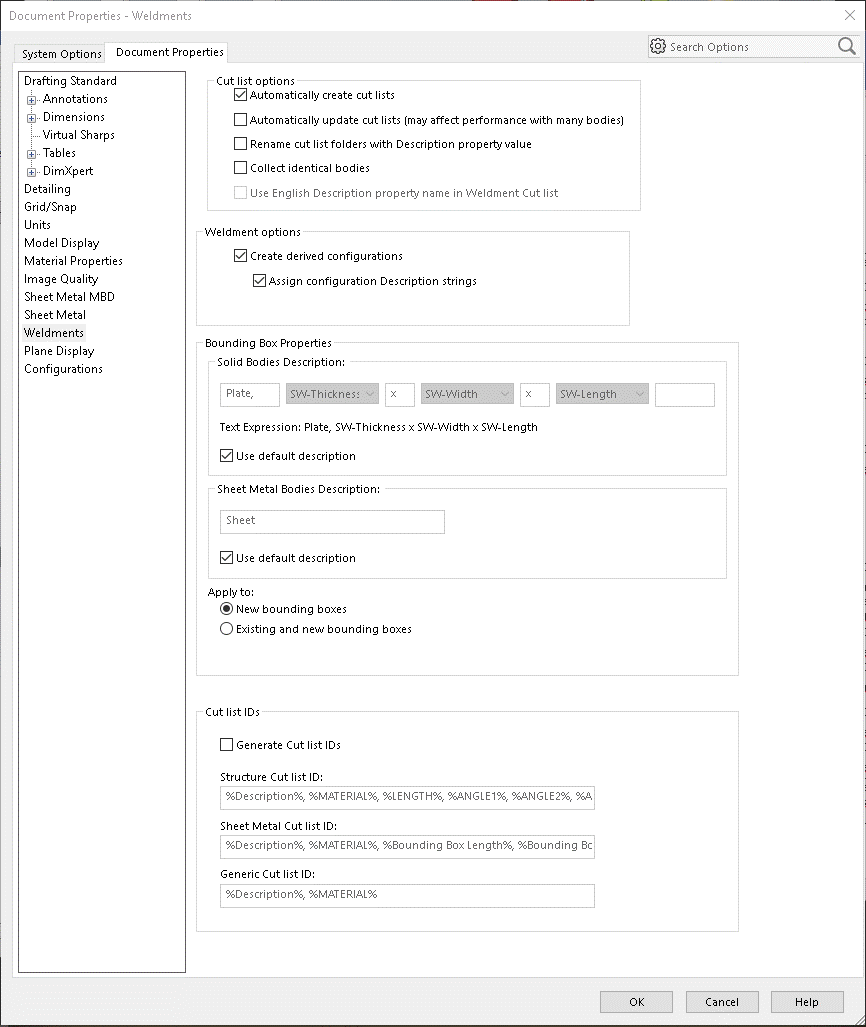

Cut list options - Automatically create cut lists |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticCutList)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticCutList,
<OnFlag>) |
Boolean value |
Specifies whether to automatically create cut lists |
|
Cut list options - Automatically update cut lists (may
affect performance with many bodies) |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticUpdate)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentEnableAutomaticUpdate,
<OnFlag>) |
Boolean value |
Specifies whether to automatically
update cut lists |
|
Cut list options - Rename cut list folders with
Description property value |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentRenameCutlistDescriptionPropertyValue)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentRenameCutlistDescriptionPropertyValue,
<OnFlag>) |
Boolean value |
Specifies whether to automatically
rename cut list folders using the Description property value |
|
Cut list options - Collect identical bodies |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentCollectIdenticalBodies)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentCollectIdenticalBodies,
<OnFlag>) |
Boolean value |
Specifies whether to collect identical bodies |
|
Cut list options - Use English Description property name in Weldment Cut
list |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentUseEnglishDescriptionNameInCutlist)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentUseEnglishDescriptionNameInCutlist,
<OnFlag>) |
Boolean value |
|
Weldment options -
Create derived configurations |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableDerivedConfigurations)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableDerivedConfigurations,
<OnFlag>) |
Boolean value |
Specifies whether to create derived
configurations; affects newly added configurations only |
Weldment options -
Assign configuration Description
strings |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableWeldmentConfigStrings)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisableWeldmentConfigStrings,
<OnFlag>) |
Boolean value |
Specifies whether to assign
configuration Description strings; swDisableDerivedConfigurations must be true for this
setting to be applicable |
|
Bounding Box Properties - Solid Bodies Description - Prefix |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionPrefix,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionPrefix,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
<Value>) |
String value |
Valid only if Solid Bodies Description - Use default description
is set to true |
|
Bounding Box Properties - Solid Bodies Description - First property |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionFirstPropertyIndex,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionFirstPropertyIndex,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
swSolidBodiesDescriptionPropertyIndex.<Value>) |
Integer value as defined in
swSolidBodiesDescriptionPropertyIndex |
Valid only if Solid Bodies Description - Use default description
is set to true |
|
Bounding Box Properties - Solid Bodies Description - First separator |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionFirstSeparator,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionFirstSeparator,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
<Value>) |
String value |
Valid only if Solid Bodies Description - Use default description
is set to true |
|
Bounding Box Properties - Solid Bodies Description - Second property |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionSecondPropertyIndex,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionSecondPropertyIndex,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
swSolidBodiesDescriptionPropertyIndex.<Value>) |
Integer value as defined in
swSolidBodiesDescriptionPropertyIndex |
Valid only if Solid Bodies Description - Use default description
is set to true |
|
Bounding Box Properties - Solid Bodies Description - Second separator |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionSecondSeparator,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionSecondSeparator,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
<Value>) |
String value |
Valid only if Solid Bodies Description - Use default description
is set to true |
|
Bounding Box Properties - Solid Bodies Description - Third property |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionThirdPropertyIndex,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swSolidBodiesDescriptionThirdPropertyIndex,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
swSolidBodiesDescriptionPropertyIndex.<Value>) |
Integer value as defined in
swSolidBodiesDescriptionPropertyIndex |
Valid only if Solid Bodies Description - Use default description
is set to true |
|
Bounding Box Properties - Solid Bodies Description - Suffix |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionSuffix,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSolidBodiesBBoxDescriptionSuffix,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
<Value>) |
String value |
Valid only if Solid Bodies Description - Use default description
is set to true |
|
Bounding Box Properties - Solid Bodies Description - Use default
description |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSolidBBoxDescriptionUseDefault)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSolidBBoxDescriptionUseDefault,
<OnFlag>) |
Boolean value |
|
|
Bounding Box Properties - Sheet Metal Bodies Description - Description |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swSheetMetalDescription,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swSheetMetalDescription,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
<Value>) |
String value |
Valid only if Sheet Metal Bodies Description - Use default
description is set to true |
|
Bounding Box Properties - Sheet Metal Bodies Description - Use default
description |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalBodiesDescriptionUseDefault)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSheetMetalBodiesDescriptionUseDefault,
<OnFlag>) |
Boolean value |
|
|
Bounding Box Properties - Apply to |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBBoxDescriptionApplyMethod,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swBBoxDescriptionApplyMethod,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
swBBoxDescriptionApplyMethod_e.<Value>) |
Integer value as defined in
swBBoxDescriptionApplyMethod_e |
|
|
Cut list IDs - Generate Cut list IDs |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentGenerateCutlistIDs)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swWeldmentGenerateCutlistIDs,
<OnFlag>) |
Boolean value |
If set to true and a cut list is available, generates cut list IDs |
|
Cut list IDs - Structure Cut list ID |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swWeldmentStructureCutlistID,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swWeldmentStructureCutlistID,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
<Value>) |
String values are properties that are listed in the Cut-List Properties
dialog: "%Description%" "%MATERIAL%" "%LENGTH%" "%ANGLE1%" "%ANGLE2%"
"%Angle Direction%" "%Angle Rotation%" |
Valid only if Cut list IDs - Generate Cut list IDs is set to true |
|
Cut list IDs - Sheet Metal Cut list ID |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swWeldmentSheetmetalCutlistID,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swWeldmentSheetmetalCutlistID,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
<Value>) |
String values are properties that are listed in the Cut-List Properties
dialog : "%Description%" "%MATERIAL%" "%Bounding Box Length%" "%Bounding
Box Width%" "%Sheet Metal Thickness%" "%Bounding Box Area%" "%Bends%"
"%Bend Radius%" |
Valid only if Cut list IDs - Generate Cut list IDs is set to true |
|
Cut list IDs - Generic Cut list ID |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swWeldmentGenericCutlistID,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swWeldmentGenericCutlistID,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
<Value>) |
String values are properties that are listed in the Cut-List Properties
dialog: "%Description%" "%MATERIAL%" |
Valid only if Cut list IDs - Generate Cut list IDs is set to true |
