System Options > Export > ACIS

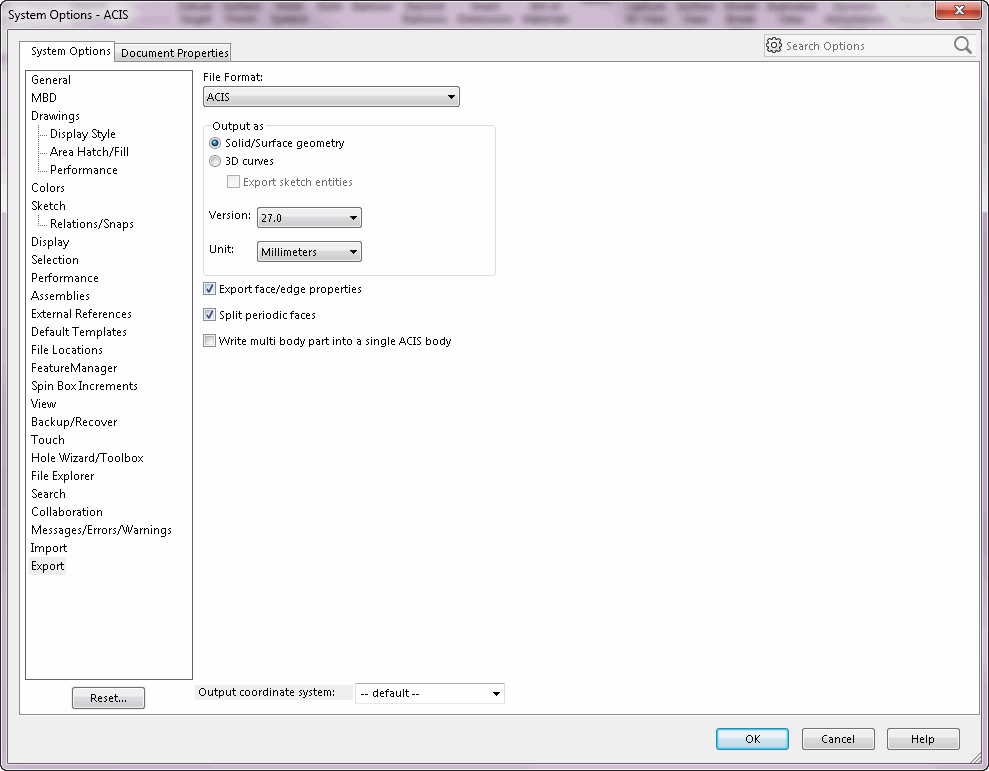

To display the dialog:

Click Tools > Options > System Options > Export > ACIS in File Format.

- or -

Click File > Save As.
In Save as type, select ACIS.
Click Options.

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Output as - Solid/Surface geometry	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputGeometryPreference) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputGeometryPreference, swAcisOutputGeometryPreference_e.swAcisOutputAsSolidAndSurface)	swAcisOutputGeometryPreference_e.swAcisOutputAsSolidAndSurface
Output as - 3D curves	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputGeometryPreference) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputGeometryPreference, swAcisOutputGeometryPreference_e.swAcisOutputAs3DCurves)	swAcisOutputGeometryPreference_e.swAcisOutputAs3DCurves
Output as - Export sketch entities	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputGeometryPreference) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputGeometryPreference, swAcisOutputGeometryPreference_e.swAcisOutputAs3DCurves_IncludeSketchEnts)	swAcisOutputGeometryPreference_e.swAcisOutputAs3DCurves_IncludeSketchEnts
Output as - Version	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputVersion) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputVersion, swAcisOutputVersion_e.<Value>)	See swAcisOutputVersion_e for valid options
Output as - Unit	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputUnits) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAcisOutputUnits, swLengthUnit_e.<Value>)	See swLengthUnit_e for valid options
Export face/edge properties	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSATExportFaceEdgeProps) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSATExportFaceEdgeProps, <OnFlag>)	Boolean value	Specifies whether to export face and edge properties
Split periodic faces	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSATExportSplitPeriodic) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSATExportSplitPeriodic, <OnFlag>)	Boolean value	Specifies whether to split periodic faces on export
Write multi body part into a single ACIS body	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSATExportMultLumpsToSingleBody) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSATExportMultLumpsToSingleBody, <OnFlag>)	Boolean value
Output coordinate system	ISldWorks::GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swExportOutputCoordinateSystem) ISldWorks::SetUserPreferenceStringValue(swUserPreferenceStringValue_e.swExportOutputCoordinateSystem, <Value>)	String value

Search 'System Options > Export > ACIS' in the SOLIDWORKS Knowledge Base.
