Adding Another Drawing Sheet

Now you create an additional drawing sheet for the assembly.

  1. If the PropertyManager is still open, click OK to close it.
  2. Right-click on any open area of the drawing sheet and select Add Sheet.
    Another sheet of the same size as Sheet1 is added to the drawing.
  3. Click Standard 3 View on the Drawing tab.
  4. In the PropertyManager, select Tutor.sldasm then click OK .

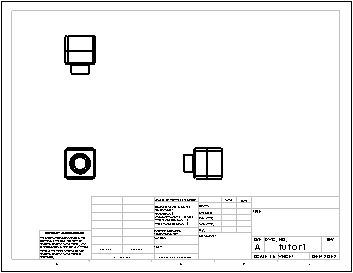

  5. Reposition the views on the sheet as shown below.
    You can use Standard 3 View to add all three standard views to a drawing at once, or you can use Model View to add one view at a time. The resulting views are the same.
