Hole Spacing

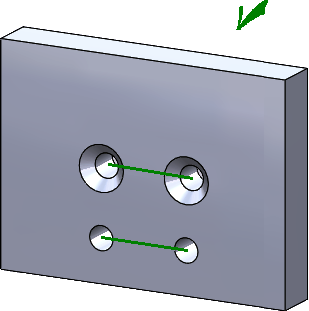

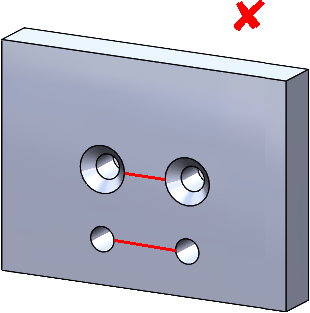

If holes are too close together, the material might become distorted.

To configure this rule, set Simple Hole Spacing to Thickness Ratio and Countersink Spacing to Thickness Ratio.

Parent topicSheet Metal Rules
