Document Properties - Hole Tables

To open this page:

With a drawing open, click Options (Standard toolbar), select the Document Properties tab, and then select Tables > Hole.

Overall drafting standard

Border

	Box Border	Sets a line thickness for the outside border of the table.
	Grid Border	Sets a line thickness for the inner grid lines of the table.

Text

Location precision

Unit Precision

Select the number of digits after the decimal point for the hole location value.

Alpha/numerical control

Select letters or numbers for hole table tag sequencing.

A, B, C	Precedes the hole tag sequence number with a letter.
1, 2, 3	Defines the hole tag sequence as a number.

Layer

Origin indicator

Origin indicator

Select a standard to govern origin display or select Per Standard to use the overall drafting standard.

ANSI, BSI: ISO, GB: DIN, JIS, GOST:

Tag angle/offset from profile center

Angle	The angle the tag makes with a vertical line through the center of the hole
Offset	The distance from the tag to the hole profile

Dual dimensions

Options

Leading zeroes	Standard Leading zeroes appear according to the overall drafting standard. Show Zeroes before decimal points are shown. Remove Leading zeroes do not appear.
Trailing zeroes	Remove only on zero Trailing zeroes are trimmed for whole metric values, conforming to ANSI and ISO standards. Same as source Trailing zeroes appear according to the ASME Y14.5M-1994 standard. Show Trailing zeroes are displayed according to the decimal places you specify for Units. Remove Trailing zeroes do not appear.
Combine same tags	Select to combine items with the same tags in one row.

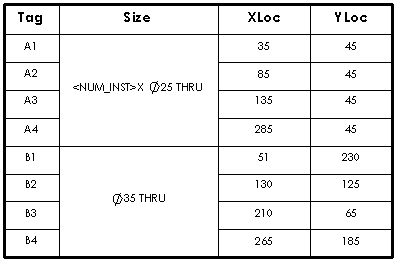

Combine same size	Select to merge holes of the same size across several rows.
Show ANSI inch letter and number drill sizes	Displays ANSI inch hole sizes in hole tables using letters or numbers. Holes created with the Hole Wizard tool display the same sizes as the Hole Specifications. Using hole type Not using hole type
Show hole centers	Select to show hole centers.
Automatic update of hole table	Select to update the hole table when you add or delete components in the associated assembly.
Reuse deleted tags	Select to use deleted tags.

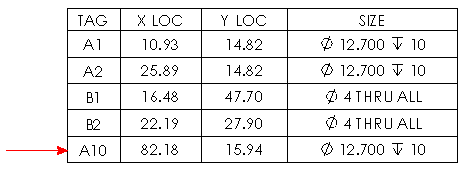

Add new row at the end of the table	Select to add new row at the bottom of the table.
