Example: Using Length and Angle Custom Properties

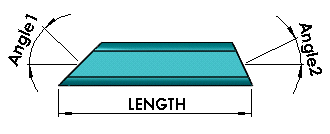

LENGTH is the length of the structural member.

Angle1 and Angle2 are the angles between the normal of the cut face and the centerline of the body.
