Fixed Fastener Assembly with Float

To evaluate the worst case scenario considering fastener float:

In the PropertyManager, select Float fasteners and pins under Analysis Parameters.
The worst case minimum decreases to 47 while the worst case maximum increases to 53. The total range of 6mm is double the range of that without fastener float.

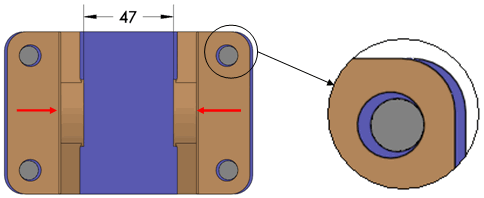

To achieve the worst case minimum result, TolAnalyst calculates the parts as described in the procedure where float is not considered. When the parts are assembled, the axle supports are pushed inward (as shown by the red arrows below) until the clearance holes make contact with the bolts, resulting in a minimum worst case of 47.
