Batch Delete Files and Folders from Vault Example (C#)
This example shows how to delete several files and a folder
from
the vault in one batch.
NOTE: If using the primary interop assembly
provided with SOLIDWORKS PDM Professional, see
Using .NET Framework 4.0 in
Stand-alone Applications.
//----------------------------------------------------------------------------
// Preconditions:
// 1. Start Microsoft Visual Studio.
// a. Click File > New > Project > Visual C# > Windows
Forms Application.
// b. Type BatchDeleteFiles_CSharp in Name.
// c. Click Browse and navigate to the folder where to
create the project.
// d. Click OK.
// e. Click Show All Files in the Solution Explorer
toolbar and expand
// Form1.cs in the Solution Explorer.
// f. Replace the code in Form1.cs with
this code.
// g. To create the form, replace the code in
Form1.Designer.cs with
// this code.
// 2. Add EPDM.Interop.epdm.dll as a reference (right-click the project
// name in the Solution Explorer, click Add Reference,
click
// Assemblies > Framework in the left-side panel,
browse to the top folder of
// your SOLIDWORKS PDM Professional installation, locate and
click
// EPDM.Interop.epdm.dll, click Open, click
Add, and click Close).
// 3. Right-click EPDM.Interop.epdm in References, click Properties,
and set
// Embed Interop Types to False to handle
methods that pass arrays of
// structures.
// 4. Ensure that the root folder of the vault contains an empty Folder1 and at
// least one file.
// 5. Click Debug > Start Debugging or press F5.
//
// Postconditions:

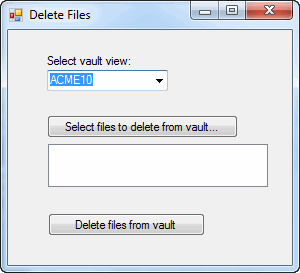

// 1. The Delete Files dialog box displays.
// a. Select a vault view.
// b. Click Select files to delete from vault.
// c. In the Select File dialog:
// 1. Click a file inside the vault.
// 2. Click Open.
// d. Click Delete files from vault.
// 2. Click Delete in the Confirm Multiple File Delete dialog box.
// a. If no errors occur, the selected file and Folder1
are moved
// from the vault to the SOLIDWORKS PDM
recycling bin.
(To see the
// SOLIDWORKS PDM recycling bin, right-click
your vault, click
// Properties, and click Deleted
Items.)
// b. If an error dialog box pops up, click OK to close
it.
// 3. Close the Delete Files dialog box.
//----------------------------------------------------------------------------
//Form1.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Windows.Forms;
using EPDM.Interop.epdm;
namespace BatchDeleteFiles_CSharp
{
public partial class Form1 : Form
{
public Form1()
{
InitializeComponent();
}
private IEdmVault5 vault1 = null;
IEdmBatchDelete3 batchDeleter;
IEdmFile5 aFile;
IEdmFolder5 aFolder;
IEdmPos5 aPos;
bool retVal;
public void Form1_Load(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault5 vault1 = new EdmVault5();
IEdmVault8 vault = (IEdmVault8)vault1;
EdmViewInfo[] Views = null;
vault.GetVaultViews(out Views, false);
VaultsComboBox.Items.Clear();
foreach (EdmViewInfo View in Views)
{
VaultsComboBox.Items.Add(View.mbsVaultName);
}
if (VaultsComboBox.Items.Count > 0)
{
VaultsComboBox.Text = (string)VaultsComboBox.Items[0];
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void SelectFiles_Click(System.Object sender, System.EventArgs e)
{
try
{
//File1List.Items.Clear()
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
//Set the initial directory in the Select
File dialog
OpenFileDialog1.InitialDirectory = vault1.RootFolderPath;
//Show the Select
File dialog
System.Windows.Forms.DialogResult DialogResult;
DialogResult = OpenFileDialog1.ShowDialog();
batchDeleter = (IEdmBatchDelete3)vault2.CreateUtility(EdmUtility.EdmUtil_BatchDelete);
if (!(DialogResult == System.Windows.Forms.DialogResult.OK))
{
// do nothing
}
else
{
IEdmFolder5 ppoRetParentFolder;
foreach (string FileName in OpenFileDialog1.FileNames)
{
File1List.Items.Add(FileName);
aFile = vault1.GetFileFromPath(FileName, out ppoRetParentFolder);
aPos = aFile.GetFirstFolderPosition();
aFolder = aFile.GetNextFolder(aPos);
// Add selected file to the batch
batchDeleter.AddFileByPath(FileName);
}
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
public void BatchDelete_Click(System.Object sender, System.EventArgs e)
{
try
{
IEdmVault7 vault2 = null;
if (vault1 == null)
{
vault1 = new EdmVault5();
}
vault2 = (IEdmVault7)vault1;
if (!vault1.IsLoggedIn)
{
vault1.LoginAuto(VaultsComboBox.Text, this.Handle.ToInt32());
}
if ((batchDeleter != null))
{
// Add Folder1 to the batch of items to be deleted
batchDeleter.AddFolder(vault1.RootFolderPath + "\\Folder1");
// Move files and folder to the Recycle Bin
retVal = batchDeleter.ComputePermissions(false, null);
if ((!retVal))
{
batchDeleter.ShowWarningDlg2(this.Handle.ToInt32(), true);
}
retVal = batchDeleter.CommitDelete(this.Handle.ToInt32(), null);
EdmBatchDelErrInfo[] ppoDelErrors = null;
if ((!retVal))
{
batchDeleter.ShowCommitErrorsDlg(this.Handle.ToInt32());
batchDeleter.GetCommitErrors(ppoDelErrors);
}
}
}
catch (System.Runtime.InteropServices.COMException ex)
{
MessageBox.Show("HRESULT = 0x" + ex.ErrorCode.ToString("X") + " " + ex.Message);
}
catch (Exception ex)
{
MessageBox.Show(ex.Message);
}
}
}
}
Back to top
//Form1.Designer.cs
namespace BatchDeleteFiles_CSharp
{
partial class Form1
{
/// <summary>
/// Required designer variable.
/// </summary>
private System.ComponentModel.IContainer components = null;
/// <summary>
/// Clean up any resources being used.
/// </summary>
/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
protected override void Dispose(bool disposing)
{
if (disposing && (components != null))
{
components.Dispose();
}
base.Dispose(disposing);
}
#region Windows Form Designer generated code
/// <summary>
/// Required method for Designer support - do not modify
/// the contents of this method with the code editor.
/// </summary>
private void InitializeComponent()
{
this.VaultsLabel = new System.Windows.Forms.Label();
this.VaultsComboBox = new System.Windows.Forms.ComboBox();
this.SelectFiles = new System.Windows.Forms.Button();
this.File1List = new System.Windows.Forms.ListBox();
this.BatchDelete = new System.Windows.Forms.Button();
this.OpenFileDialog1 = new System.Windows.Forms.OpenFileDialog();
this.SuspendLayout();
//
//VaultsLabel
//
this.VaultsLabel.AutoSize = true;
this.VaultsLabel.Location = new System.Drawing.Point(36, 24);
this.VaultsLabel.Name = "VaultsLabel";
this.VaultsLabel.Size = new System.Drawing.Size(91, 13);
this.VaultsLabel.TabIndex = 0;
this.VaultsLabel.Text = "Select vault view:";
//
//VaultsComboBox
//
this.VaultsComboBox.FormattingEnabled = true;
this.VaultsComboBox.Location = new System.Drawing.Point(39, 40);
this.VaultsComboBox.Name = "VaultsComboBox";
this.VaultsComboBox.Size = new System.Drawing.Size(121, 21);
this.VaultsComboBox.TabIndex = 1;
//
//SelectFiles
//
this.SelectFiles.Location = new System.Drawing.Point(39, 85);
this.SelectFiles.Name = "SelectFiles";
this.SelectFiles.Size = new System.Drawing.Size(191, 23);
this.SelectFiles.TabIndex = 2;
this.SelectFiles.Text = "Select files to delete from vault...";
this.SelectFiles.UseVisualStyleBackColor = true;
this.SelectFiles.Click += new System.EventHandler(SelectFiles_Click);
//
//File1List
//
this.File1List.FormattingEnabled = true;
this.File1List.HorizontalScrollbar = true;
this.File1List.Location = new System.Drawing.Point(40, 114);
this.File1List.Name = "File1List";
this.File1List.SelectionMode = System.Windows.Forms.SelectionMode.MultiExtended;
this.File1List.Size = new System.Drawing.Size(220, 43);
this.File1List.TabIndex = 4;
//
//BatchDelete
//
this.BatchDelete.Location = new System.Drawing.Point(40, 183);
this.BatchDelete.Name = "BatchDelete";
this.BatchDelete.Size = new System.Drawing.Size(157, 23);
this.BatchDelete.TabIndex = 6;
this.BatchDelete.Text = "Delete files from vault";
this.BatchDelete.UseVisualStyleBackColor = true;
this.BatchDelete.Click += new System.EventHandler(this.BatchDelete_Click);
//
//OpenFileDialog1
//
this.OpenFileDialog1.FileName = "OpenFileDialog1";
this.OpenFileDialog1.Multiselect = true;
this.OpenFileDialog1.Title = "Select File";
//
//Form1
//
this.AutoScaleDimensions = new System.Drawing.SizeF(6f, 13f);
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
this.ClientSize = new System.Drawing.Size(284, 235);
this.Controls.Add(this.BatchDelete);
this.Controls.Add(this.File1List);
this.Controls.Add(this.SelectFiles);
this.Controls.Add(this.VaultsComboBox);
this.Controls.Add(this.VaultsLabel);
this.Name = "Form1";
this.Text = "Delete Files";
this.Load += new System.EventHandler(this.Form1_Load);
this.ResumeLayout(false);
this.PerformLayout();
}
internal System.Windows.Forms.Label VaultsLabel;
internal System.Windows.Forms.ComboBox VaultsComboBox;
internal System.Windows.Forms.Button SelectFiles;
internal System.Windows.Forms.ListBox File1List;
internal System.Windows.Forms.Button BatchDelete;
internal System.Windows.Forms.OpenFileDialog OpenFileDialog1;
#endregion
}
}
Back to top
