Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|

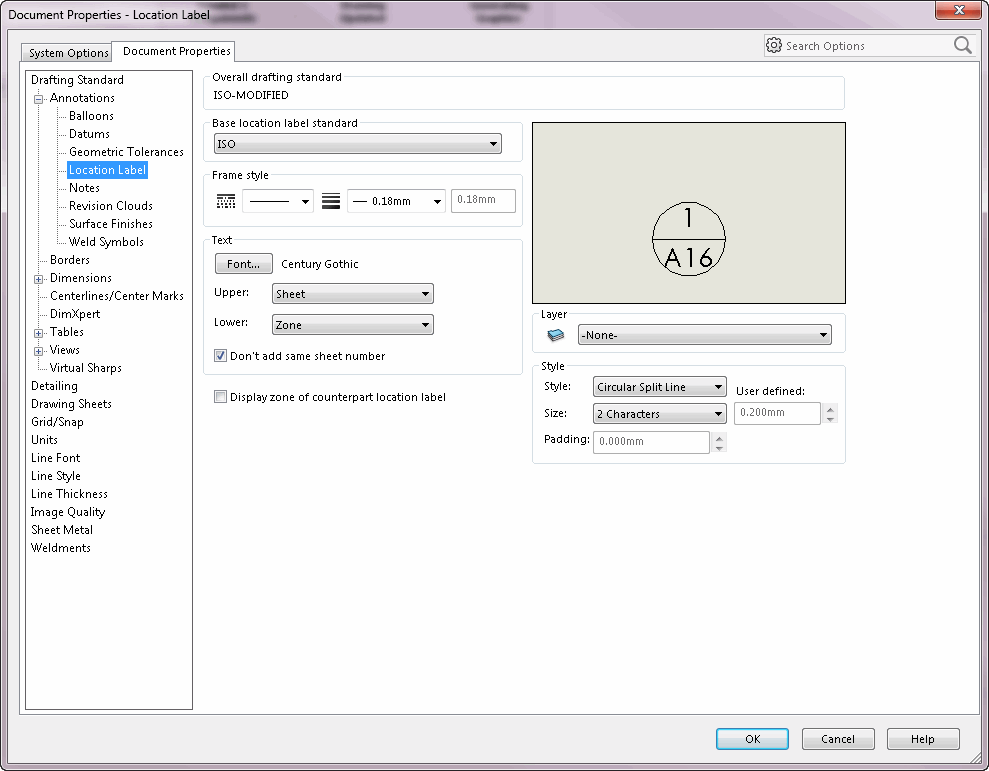

Base location label standard |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingLocationLabel, swDetailingStandard_e.<Value>) |
See swDetailingStandard_e
for valid options |
Specifies the standard to use for a location label |
|
Frame style - Frame Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFrameLineStyle,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFrameLineStyle,
swUserPreferenceOption_e.swDetailingLocationLabel, swLineStyles_e.<Value>) |
See swLineStyles_e
for valid options |
Specifies the style of the frame of a location label |
|
Frame style - Frame
Thickness |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFrameLineThickness,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFrameLineThickness,
swUserPreferenceOption_e.swDetailingLocationLabel, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
Specifies the thickness of the frame of a location label |
|
Frame style - Custom Thickness |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelFrameLineThicknessCustom,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelFrameLineThicknessCustom,
swUserPreferenceOption_e.swDetailingLocationLabel, <Value>) |
Double value |
Specifies the custom thickness of the lines of a location label frame |
|
Text - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingLocationLabelTextFormat,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingLocationLabelTextFormat,
swUserPreferenceOption_e.swDetailingLocationLabel, <Value>) |
See ITextFormat
for valid font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the set method |
|
Text - Upper |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelUpperText,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelUpperText,
swUserPreferenceOption_e.swDetailingLocationLabel, swLocationLabelText_e.<Value>) |
See
swLocationLabelText_e
for valid options |
Specifies the text for the upper section of a location label |
|
Text - Lower |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelLowerText,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelLowerText,
swUserPreferenceOption_e.swDetailingLocationLabel, swLocationLabelText_e.<Value>) |
See
swLocationLabelText_e
for valid options |
Specifies the text for the lower section of a location label |
Text -
Don't add same sheet number |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingLocationLabelAddSameSheetNumber,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingLocationLabelAddSameSheetNumber,
swUserPreferenceOption_e.swDetailingLocationLabel, <Value>) |
Boolean value |
Specifies whether to add the same
sheet number to a location label |
|
Display zone of counterpart location label |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCounterpartLocationLabel,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayCounterpartLocationLabel,
swUserPreferenceOption_e.swDetailingLocationLabel, <Value>) |
Boolean value |
Specifies whether to display the zone of the counterpart location label |
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingLocationLabel, <Value>) |
String value |
Specifies the name of the layer to which to apply these settings; this setting
is available only in drawings |
Style - Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelStyle,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelStyle,
swUserPreferenceOption_e.swDetailingLocationLabel, swBalloonStyle_e.<Value>) |
See
swBalloonStyle_e for valid options |
Specifies the style of a location
label |
Style - Size |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFit,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingLocationLabelFit,
swUserPreferenceOption_e.swDetailingLocationLabel, swBalloonFit_e.<Value>) |
See
swBalloonFit_e
for valid options |
Specifies the size of a location
label |
Style - User defined |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelStyleCustomSize,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelStyleCustomSize,
swUserPreferenceOption_e.swDetailingLocationLabel, <Value>) |
Double value |
Specifies a user-defined size of a location label |
Style - Padding |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelPadding,
swUserPreferenceOption_e.swDetailingLocationLabel)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swDetailingLocationLabelPadding,
swUserPreferenceOption_e.swDetailingLocationLabel, <Value>) |
Double value |
Specifies the size of the extra
padding inside tight-fit borders for a location label |
