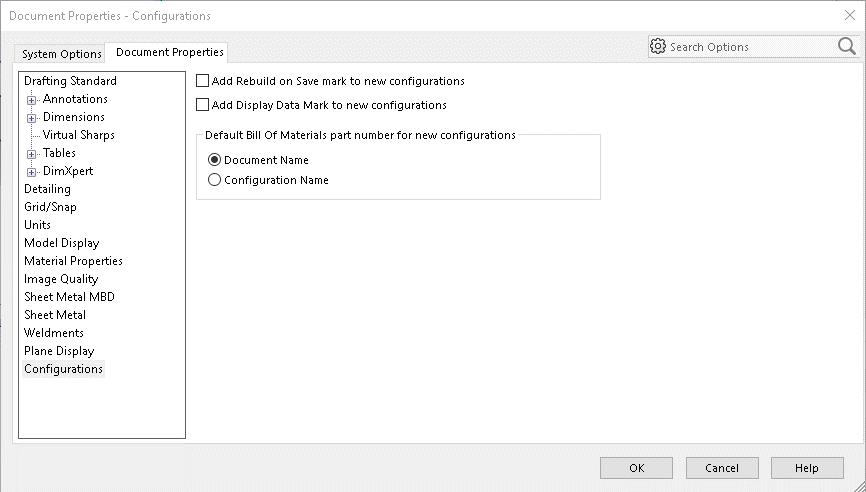

Document Properties > Configurations

Configurations settings are not supported in SOLIDWORKS Connected.

Setting	Get/Set Methods	Return Value or <Value>	Comments
Add Rebuild/Save mark to new configurations (Not supported in SOLIDWORKS Connected)	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swRebuildSaveNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swRebuildSaveNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Boolean value	Specifies whether to apply the Rebuild/Save mark to new configurations.
Add Display Data Mark to new configurations (Not supported in SOLIDWORKS Connected)	IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDataMarkNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDisplayDataMarkNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	Boolean value
Default Bill Of Materials part number for new configurations	IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDefaultBOMPartNumberForNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDefaultBOMPartNumberForNewConfig, swUserPreferenceOption_e.swDetailingNoOptionSpecified, swBOMPartNumberSource_e.<Value>)	swBOMPartNumberSource_e.swBOMPartNumber_DocumentName - or - swBOMPartNumberSource_e.swBOMPartNumber_ConfigurationName

Search 'Document Properties > Configurations' in the SOLIDWORKS Knowledge Base.
