Setting |
Get/Set Methods |
Return Value
or
<Value>
or
<OnFlag> |
Comments |
|

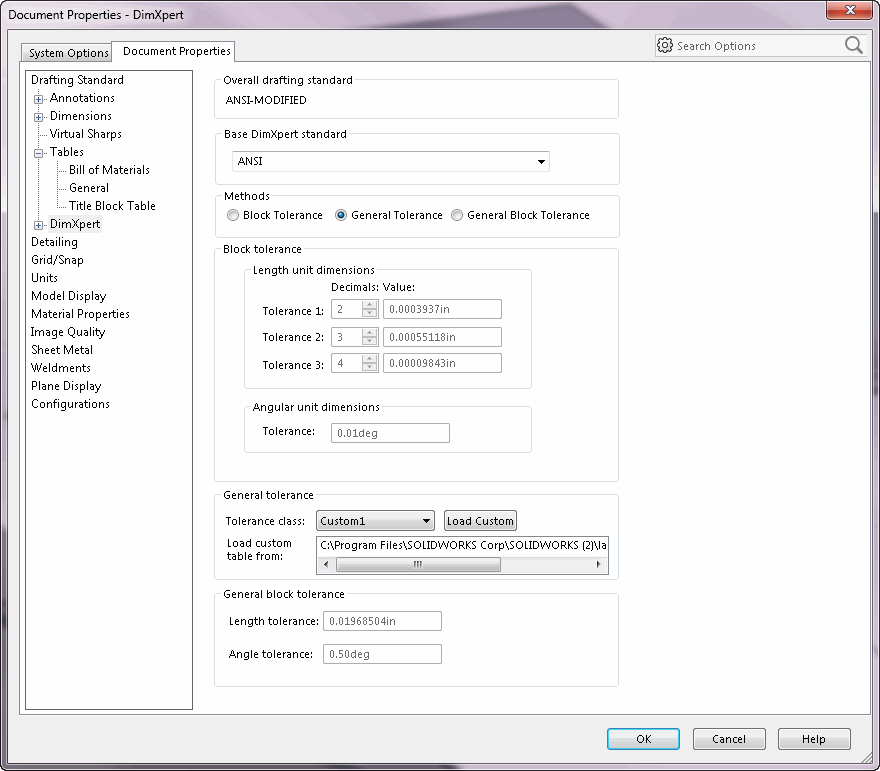

Methods - Block Tolerance or General
Tolerance |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertBlockTolerance
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPartDimXpertBlockTolerance,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <OnFlag>) |
Boolean value |
Specifies whether to use Block
Tolerances or General Tolerances on dimensions that do not contain tolerances;
true for Block Tolerances |
|
Block Tolerance - Length unit dimensions -
Tolerance 1 - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol1Decimals,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol1Decimals,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value |
Specifies number of decimal places
for first tolerance |
|
Block Tolerance - Length unit dimensions -
Tolerance 1 - Value |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol1Value,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol1Value,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value in meters |
Specifies symmetric plus or minus
tolerance for first tolerance |
|
Block Tolerance - Length unit dimensions -
Tolerance 2 - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol2Decimals,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol2Decimals,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value |
Specifies number of decimal places
for second tolerance |
|
Block Tolerance - Length unit dimensions -
Tolerance 2 - Value |
ModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol2Value,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol2Value,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value in meters |
Specifies symmetric plus or minus
tolerance for second tolerance |
|
Block Tolerance - Length unit dimensions -
Tolerance 3 - Decimals |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol3Decimals,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertLengthUnitTol3Decimals,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Integer value |
Specifies number of decimal places
for third tolerance |
|
Block Tolerance - Length unit dimensions -
Tolerance 3 - Value |
ModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol3Value,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertLengthUnitTol3Value,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value in meters |
Specifies symmetric plus or minus
tolerance for third tolerance |
|
Angular unit dimensions - Tolerance |
ModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertAngularUnitTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swPartDimXpertAngularUnitTolValue,
swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>) |
Double value in radians |
Specifies the tolerance value to use
for all angular dimensions |
|
General tolerance - Tolerance class |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertGeneralToleranceClass,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swPartDimXpertGeneralToleranceClass,
swUserPreferenceOption_e.swDetailingNoOptionSpecified,
swDimXpertGeneralTolClass_e.<Value>) |
See
swDimXpertGeneralTolClass_e for valid options |
Specifies the part tolerance class |
|
General tolerance - Load custom table from |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDimXpertGeneralToleranceCustomTable,
swUserPreferenceOption_e.swDetailingNoOptionSpecified)
|
String value |
Specifies the full path name of the custom table to load; non-empty value only
for Parts and when Tolerance class is set to swDimXpertGeneralTolClass_Custom1 or
swDimXpertGeneralTolClass_Custom2 |
