System Options > Import > IDF

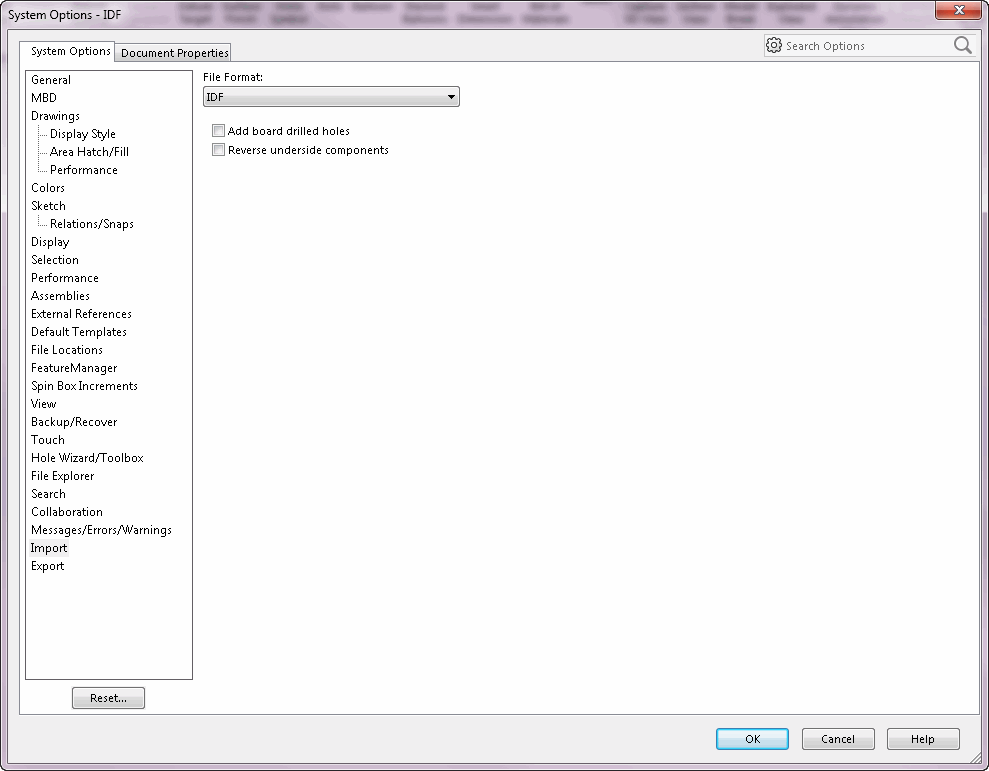

To display the dialog:

Click Tools > Options > System Options > Import > IDF in File Format.

- or -

  1. Click File > Open.
  2. In Files of type, select IDF.
  3. Click Options.



Setting

Get/Set Methods

Return Value
or
<OnFlag>

Comment

Add board drilled holes

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIDFAddDrilledHoles)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIDFAddDrilledHoles. <OnFlag>)

Boolean value

Specifies whether to add drilled holes from the circuit board; for Intermediate Data Format (IDF) circuit boards files only

Reverse underside components

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIDFReverseUndersideComponents)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swImportIDFReverseUndersideComponents. <OnFlag>)

Boolean value

Specifies whether to compensate for incorrectly rotated components by allowing proper location of the component features; for Intermediate Data Format (IDF) circuit board files only
