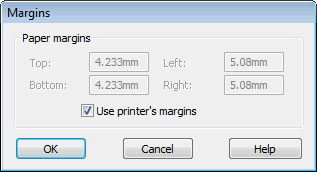

File > Print > Margins

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Paper margins - Top	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swPageSetupPrinterTopMargin) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swPageSetupPrinterTopMargin, <Value>)	Double value in meters	Specifies width of left margin
Paper margins - Bottom	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swPageSetupPrinterBottomMargin) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swPageSetupPrinterBottomMargin, <Value>)	Double value in meters	Specifies width of left margin
Paper margins - Left	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swPageSetupPrinterLeftMargin) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swPageSetupPrinterLeftMargin, <Value>)	Double value in meters	Specifies width of left margin
Paper margins - Right	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swPageSetupPrinterRightMargin) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swPageSetupPrinterRightMargin, <Value>)	Double value in meters	Specifies width of left margin
Paper margins - Use printer's margins	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupPrinterUsePrinterMargin) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swPageSetupPrinterUsePrinterMargin, <OnFlag>)	Boolean value	Specifies whether to print document with printer's default margin values

Search 'File > Print > Margins' in the SOLIDWORKS Knowledge Base.
