File > Save As

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment

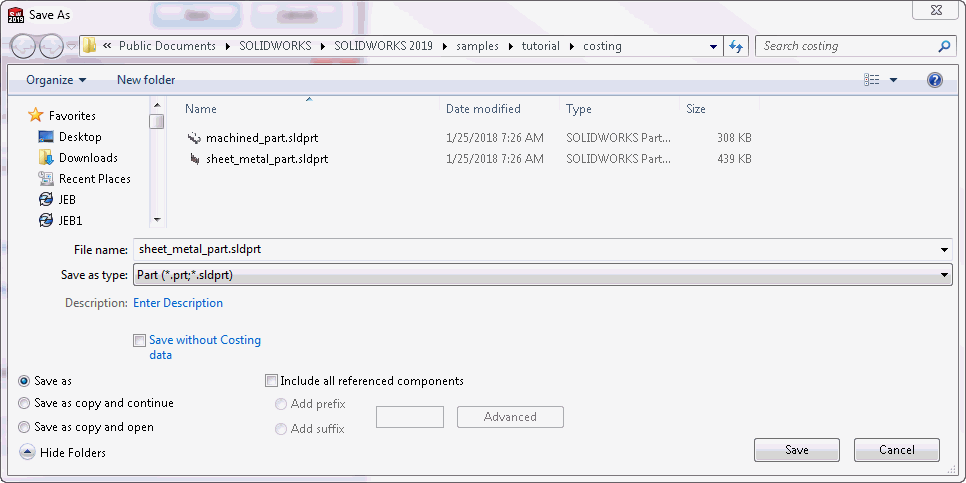

Save without Costing data	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveWithoutCostingData) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveWithoutCostingData, <OnFlag>)	Boolean value	Specifies whether to save the sheet metal part without any Costing data

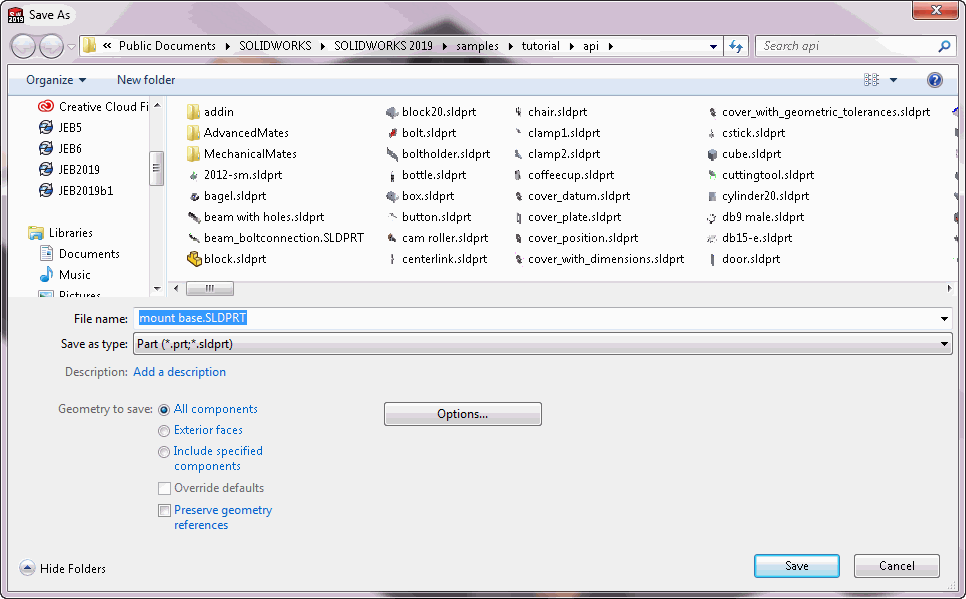

Geometry to save: Exterior faces Exterior components All components	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveAssemblyAsPartOptions) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveAssemblyAsPartOptions, swSaveAsmAsPartOptions_e.<Value>)	See swSaveAsmAsPartOptions_e for valid options	Specifies the geometry of an assembly to save as a multi-body part
Preserve geometry references	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveAsmAsPartPreserveIDs) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveAsmAsPartPreserveIDs, <OnFlag>)	Boolean value	Specifies whether to preserve geometry reference IDs when saving an assembly as a part

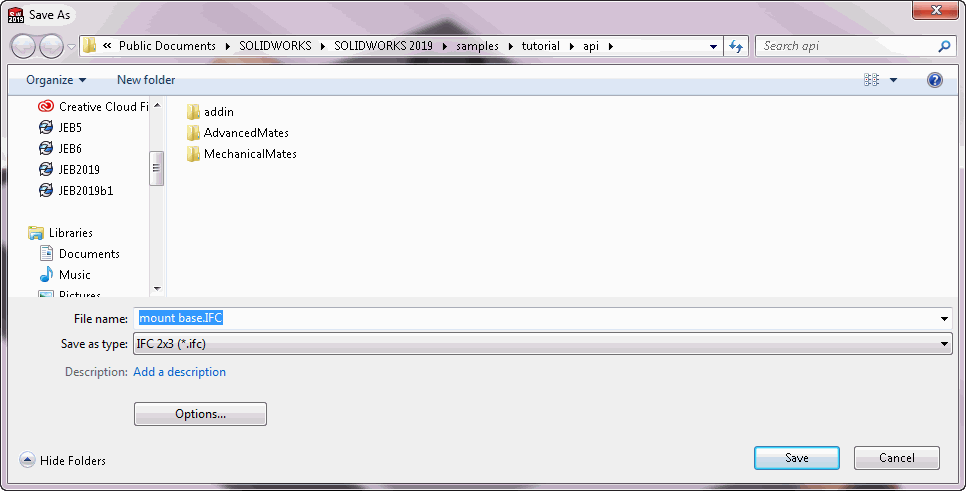

Save as type - IFC 2x3 or IFC 4	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveIFCFormat) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSaveIFCFormat, <Value>)	23 = IFC 2x3 4 = IFC 4	Specifies the IFC format in which to save a part

Search 'File > Save As' in the SOLIDWORKS Knowledge Base.
