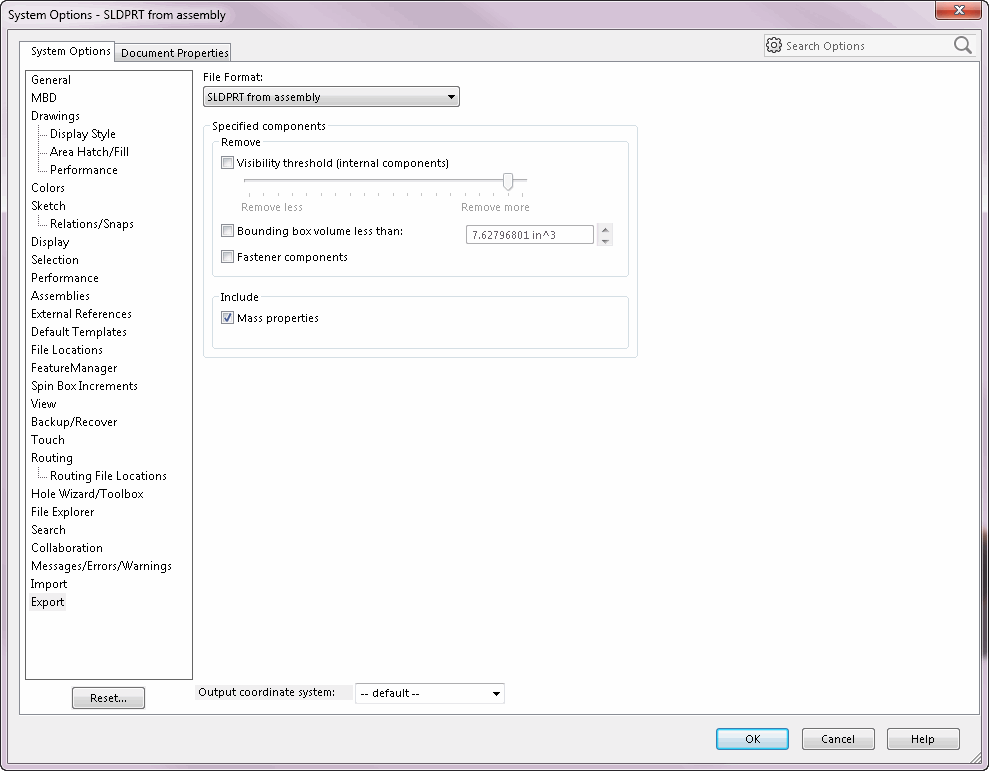

System Options > Export > SLDPRT from assembly

To display the dialog:

Click Tools > Options > System Options > Export > SLDPRT from assembly in File Format.

- or -

Click File > Save As.
In Save as type, select Part (*.prt, *.sldprt).
Click Options.

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Specified components - Remove - Visibility threshold (internal components)	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swASMSLDPRT_ExcludeComponentsByVisibility) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swASMSLDPRT_ExcludeComponentsByVisibility, <OnFlag>)	Boolean value	Specifies whether to remove from the export list those internal components whose visibility is less than the threshold specified by swASMSLDPRT_ExcludeComponentsByVisibilityThreshold
Specified components - Remove - Visibility threshold (internal components) - (slider amount)	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swASMSLDPRT_ExcludeComponentsByVisibilityThreshold) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swASMSLDPRT_ExcludeComponentsByVisibilityThreshold, <Value>)	Double value in meters-cubed	Valid only if swASMSLDPRT_ExcludeComponentsByVisibility is set to true
Specified components - Remove - Bounding box volume less than:	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swExcludeComponentsByBBoxVolume) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swExcludeComponentsByBBoxVolume, <OnFlag>)	Boolean value	Specifies whether to remove from the export list those components whose bounding box volumes are less than the threshold specified by swASMSLDPRT_ExcludeComponentsByBBoxVolumeThreshold
Specified components - Remove - Bounding box volume less than: (amount)	ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swASMSLDPRT_ExcludeComponentsByBBoxVolumeThreshold) ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swASMSLDPRT_ExcludeComponentsByBBoxVolumeThreshold, <Value>)	Double value in meters-cubed	Valid only if swExcludeComponentsByBBoxVolume is set to true
Specified components - Remove - Fastener components	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swASMSLDPRT_ExcludeIfToolboxComponents) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swASMSLDPRT_ExcludeIfToolboxComponents, <OnFlag>)	Boolean value	Specifies whether to remove from the export list fastener components
Specified components - Include - Mass properties	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swASMSLDPRT_IncludeMassProperties) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swASMSLDPRT_IncludeMassProperties, <OnFlag>)	Boolean value	Specifies whether to override the mass properties of the part with the mass properties from the assembly
Output coordinate system	ISldWorks::GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swExportOutputCoordinateSystem) ISldWorks::SetUserPreferenceStringValue(swUserPreferenceStringValue_e.swExportOutputCoordinateSystem, <Value>)	String value

Search 'System Options > Export > SLDPRT from assembly' in the SOLIDWORKS Knowledge Base.
