System Options > Export > EDRW/EPRT/EASM

This topic contains two tables. The information in the table:

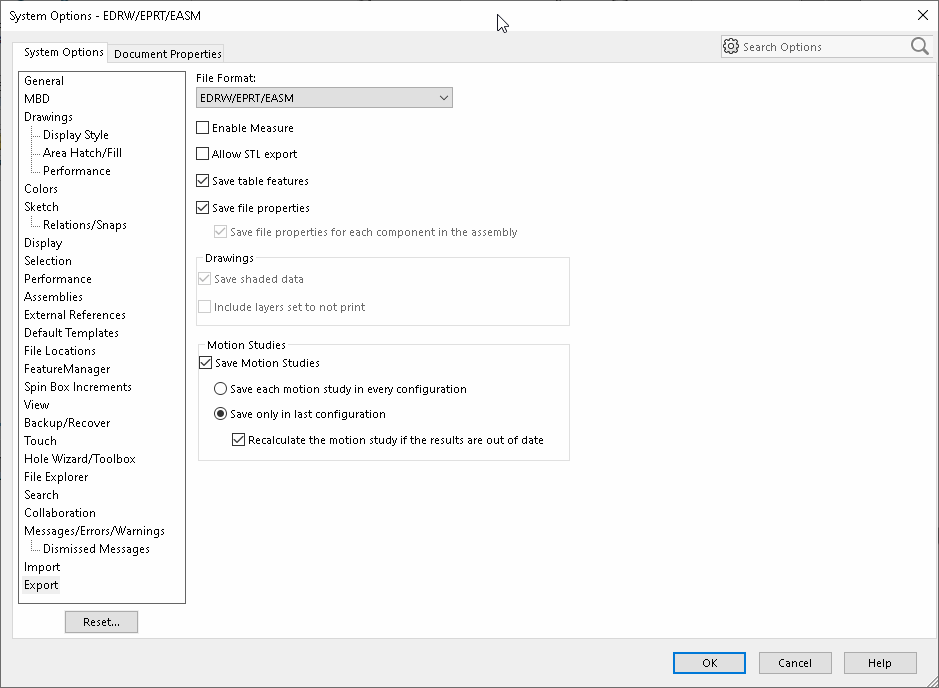

  • appearing immediately after the screen capture corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

To display the dialog:

Click Tools > Options > System Options > Export > EDRW/EPRT/EASM in File Format.

- or -

  1. Click File > Save As.
  2. In Save as type, select eDrawings.
  3. Click Options.

Exporting in the EDRW/EPRT/EASM file format is not supported in SOLIDWORKS Connected.



Setting

Get/Set Methods

Return Value
or
<OnFlag>

Comment

Enable Measure

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsOkayToMeasure)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsOkayToMeasure, <OnFlag>)

Boolean value

Specifies whether to enable measurement of geometry in eDrawings file

Allow STL export

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsExportSTLOkay)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsExportSTLOkay, <OnFlag>)

Boolean value

Specifies whether to allow recipients of eDrawings file to save it as STL file from eDrawings Viewer

Save table features

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveBOM)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveBOM, <OnFlag>)

Boolean value



Save file properties

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveFileProperties)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveFileProperties, <OnFlag>)

Boolean value



Save file properties for each component in the assembly

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveFilePropertiesForEachComp)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSaveFilePropertiesForEachComp, <OnFlag>)

Boolean value

For SOLIDWORKS assemblies only; valid only if Save file properties is set to true

Drawings - Save shaded data

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveShadedDataInDrawings)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveShadedDataInDrawings, <OnFlag>)

Boolean value

For SOLIDWORKS drawings only; specifies whether to save shaded data from SOLIDWORKS drawing document in published eDrawings file


Drawings - Include layers set to not print
(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsIncludeLayersNotToPrint)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsIncludeLayersNotToPrint, <OnFlag>)


Boolean value		 Specifies whether to include layers set not to print

Motion Studies - Save Motion Studies

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationOkay)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationOkay, <OnFlag>)

Boolean value

Specifies whether to save motion studies to eDrawings file

Save each motion study in every configuration

- or -

Save only in last configuration

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationToAllConfigs)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationToAllConfigs, <OnFlag>)

Boolean value:

  • True: Save each motion study in every configuration

  • False: save each motion study only in the configuration in which it was last calculated

Specifies how to save motion studies to eDrawings files

Recalculate the motion study if the results are out of date

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationRecalculate)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swEDrawingsSaveAnimationRecalculate, <OnFlag>)

Boolean value

Specifies whether to recalculate the motion study or use existing results in eDrawings file; valid only if swEDrawingsSaveAnimationToAllConfigs is set to False



Obsolete Enumerators

Enumerator

Comment

swEDrawingsCompression

Obsolete

swEdrawingsSaveAsSelectionOption

Obsolete

swEmodelSelectionList

Obsolete
