Route Properties PropertyManager

Setting	Get/Set Methods	Return Value or <Value>	Comments

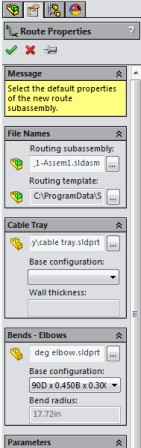

Cable Tray - component path and file name	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swElecCableTrayDuctName, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swElecCableTrayDuctName, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	See SOLIDWORKS Routing Help for details about the electrical cable tray sub-route type
Bends - Elbows - component path and file name for Cable Tray	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swElecCableTrayElbowName, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swElecCableTrayElbowName, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	See SOLIDWORKS Routing Help for details about the electrical cable tray sub-route type

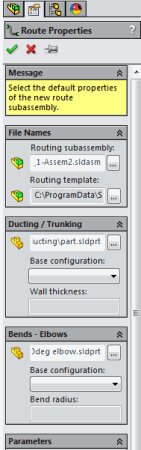

Ducting/Trunking - component path and file name	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swElecDuctingDuctName, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swElecDuctingDuctName, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	See SOLIDWORKS Routing Help for details about the electrical ducting/trunking sub-route type
Bends - Elbows - component path and file name for Ducting/Trunking	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swElecDuctingElbowName, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swElecDuctingElbowName, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	See SOLIDWORKS Routing Help for details about the electrical ducting/trunking sub-route type

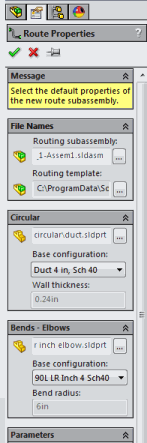

Circular - component path and file name	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swHvacCirDuctName, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swHvacCirDuctName, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	See SOLIDWORKS Routing Help for details about the user-defined circular cross-section sub-route type
Bends - Elbows - component path and file name for Circular	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swHvacCirElbowName, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swHvacCirElbowName, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	See SOLIDWORKS Routing Help for details about the user-defined circular cross-section sub-route type

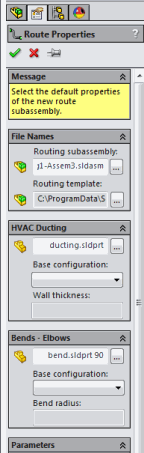

HVAC Ducting - component path and file name	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swHvacRectDuctName, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swHvacRectDuctName, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	See SOLIDWORKS Routing Help for details about the user-defined rectangular cross-section sub-route type
Bends - Elbows - component path and file name for HVAC Ducting	IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swHvacRectElbowName, swUserPreferenceOption_e.swDetailingNoOptionSpecified) IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swHvacRectElbowName, swUserPreferenceOption_e.swDetailingNoOptionSpecified, <Value>)	String value	See SOLIDWORKS Routing Help for details about the user-defined rectangular cross-section sub-route type
