System Options > Search

This topic contains two tables. The information in the table:

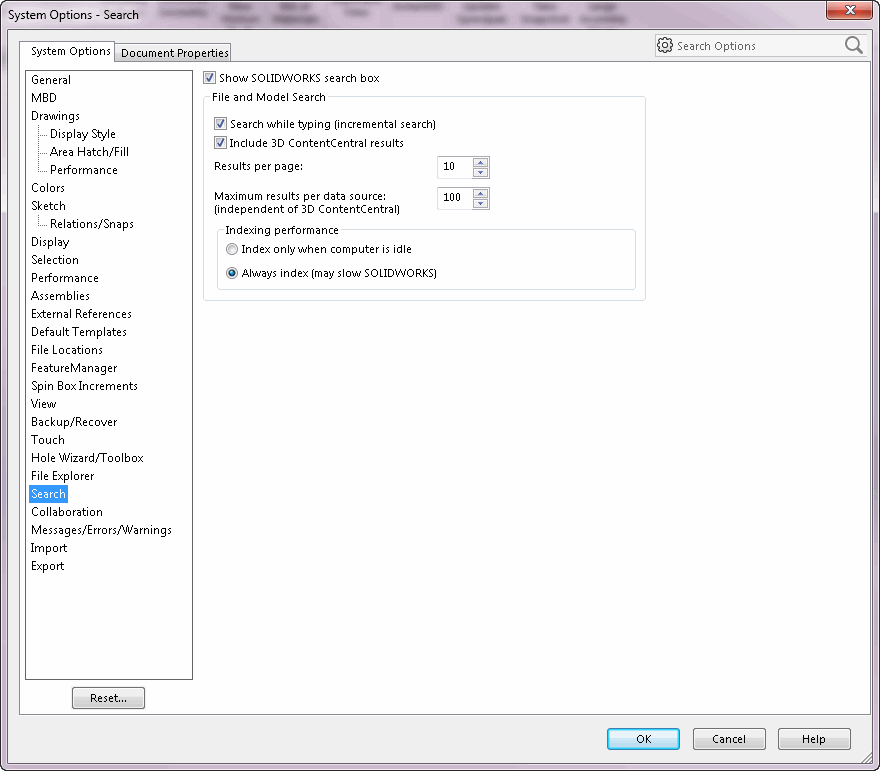

appearing immediately after the screen capture corresponds to the settings on that dialog.
titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

The Search dialog is not available in SOLIDWORKS Connected.

Setting	Get/Set Methods	Return Value or <Value> or <OnFlag>	Comment
Show SOLIDWORKS search box	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchShowSOLIDWORKSSearchBox) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchShowSOLIDWORKSSearchBox, <OnFlag>)	Boolean value	Specifies whether to show the SOLIDWORKS search box
File and Model Search - Search while typing (incremental search) (Not supported in SOLIDWORKS Connected)	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchWhileTyping) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchWhileTyping, <OnFlag>)	Boolean value	Specifies whether to start the search while typing the search string
File and Model Search - Include 3D ContentCentral results (Not supported in SOLIDWORKS Connected)	ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchIncludeContentCentral) ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swSearchIncludeContentCentral, <OnFlag>)	Boolean value	Specifies whether to start the search while typing the search string
File and Model Search - Results per page (Not supported in SOLIDWORKS Connected)	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchResultsPerPage) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchResultsPerPage, <Value>)	Integer value	Specifies number of search results to show per page
File and Model Search - Maximum results per data source (independent of 3D ContentCentral) (Not supported in SOLIDWORKS Connected)	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchMaxResultsPerDataSource) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchMaxResultsPerDataSource, <Value>)	Integer value	Specifies maximum number of results per data source (independent of 3D Content Central)
File and Model Search - Indexing Performance (Not supported in SOLIDWORKS Connected)	ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchIndexingPerformance) ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSearchIndexingPerformance, swSearchIndexingPerformance_e.<Value>)	See swSearchIndexingPerformance_e for valid options	Specifies when to perform search indexing

Obsolete Enumerators

Enumerator	Comment
swSearchDissectionScheduleDaily	Obsolete
swSearchDissectionDailyStartTime	Obsolete
swSearchDissectionDailyStopTime	Obsolete
swSearchDissectionLocation	Obsolete

Search 'System Options > Search' in the SOLIDWORKS Knowledge Base.
