Setting |
Get/Set Methods |
Return Value or <Value> |
Comments |
|

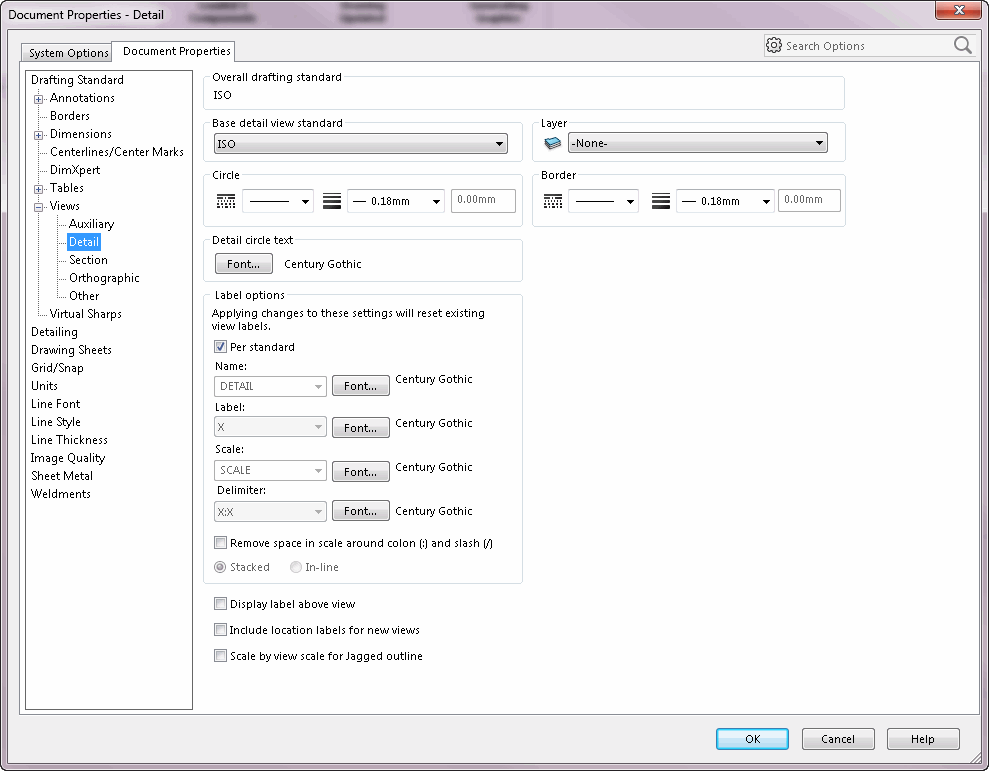

Base detail view standard |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDimensionStandard,
swUserPreferenceOption_e.swDetailingDetailView, swDetailingStandard_e.<Value>) |
See swDetailingStandard_e
for valid options |
Specifies the base detail view standard to use |
|
Circle - Line Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailCircleStyle,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailCircleStyle,
swUserPreferenceOption_e.swDetailingDetailView, swLineStyles_e.<Value>) |
See swLineStyles_e
for valid options |
Specifies the line style of detail view circles |
|
Circle - Line Thickness |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailCircleThickness,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailCircleThickness,
swUserPreferenceOption_e.swDetailingDetailView, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
Specifies the line thickness of detail view circles |
|
Circle - Custom thickness |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDetailCircleThicknessCustom,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDetailCircleThicknessCustom,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
Double value |
Specifies custom thickness of lines for detail view circles; sets Custom Thickness
to the specified thickness and
Leader Thickness to Custom Size |
|
Border - Line Style |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailBorderStyle,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailBorderStyle,
swUserPreferenceOption_e.swDetailingDetailView, swLineStyles_e.<Value>) |
See swLineStyles_e
for valid options |
Specifies style of detail view border |
|
Border - Line Thickness |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailBorderThickness,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swLineFontDetailBorderThickness,
swUserPreferenceOption_e.swDetailingDetailView, swLineWeights_e.<Value>) |
See swLineWeights_e
for valid options |
Specifies thickness of detail view border |
|
Border - Custom thickness |
IModelDocExtension::GetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDetailBorderThicknessCustom,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceDouble(swUserPreferenceDoubleValue_e.swLineFontDetailBorderThicknessCustom,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
Double value |
Specifies custom thickness of detail view border lines; sets Custom Thickness
to the specified thickness and
Leader Thickness to Custom Size |
|
Detail circle text - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailTextFormat,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailTextFormat,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
|
Label options - Per standard |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_PerStandard,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_PerStandard,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
Boolean value |
|
If... |
Then display the detail view label according
to the format... |
|
True |
Required by the current detailing standard |
|
False |
Determined by these document-level user preferences:
swDetailingDetailViewLabels_Name
swDetailingDetailViewLabels_Label
swDetailingDetailViewLabels_Scale
swDetailingDetailViewLabels_Delimiter |
|
|
Label options - Name |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Name,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Name,
swUserPreferenceOption_e.swDetailingDetailView, swDetailingViewLabelsName_e.<Value>) |
See swDetailingViewLabelsName_e
for valid options |
Specifies the label to use in front of the detail view; if set to
swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom, then set Label
options - Name (CUSTOM) to a custom label |
|
Label options - Name (CUSTOM) |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingDetailViewLabels_CustomName,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingDetailViewLabels_CustomName,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
String value |
Specifies the custom label to use in front of the detail view; valid
only if Label options - Name is set to
swDetailingViewLabelsName_e.swDetailingViewLabelsName_custom |
|
Label options - Name - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_NameTextFormat,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_NameTextFormat,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
|
Label options - Label |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Label,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Label,
swUserPreferenceOption_e.swDetailingDetailView, swDetailingViewLabelsLabel_e.<Value>) |
See swDetailingViewLabelsLabel_e
for valid options |
Specifies the format of the detail view label |
|
Label options - Label - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_LabelTextFormat,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_LabelTextFormat,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
|
Label options - Scale |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Scale,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Scale,
swUserPreferenceOption_e.swDetailingDetailView, swDetailingViewLabelsScale_e.<Value>) |
See swDetailingViewLabelsScale_e
for valid options |
Specifies the label to use in front of the scale value; if set to
swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom, then set
Label options - Scale (CUSTOM) to a custom scale label |
|
Label options - Scale (CUSTOM) |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingDetailViewLabels_CustomScale,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingDetailViewLabels_CustomScale,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
String value |
Specifies the custom label to use in front of the scale value; valid
only if Label options - Scale is set to
swDetailingViewLabelsScale_e.swDetailingViewLabelsScale_SCALEcustom |
|
Label options - Scale - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_ScaleTextFormat,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_ScaleTextFormat,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
|
Label options - Delimiter |
IModelDocExtension::GetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Delimiter,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceInteger(swUserPreferenceIntegerValue_e.swDetailingDetailViewLabels_Delimiter,
swUserPreferenceOption_e.swDetailingDetailView, swDetailingViewLabelsDelimiter_e
.<Value>) |
See swDetailingViewLabelsDelimiter_e
for valid options |
Specifies the format of the scale value |
|
Label options - Delimiter - Font |
IModelDocExtension::GetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_DelimiterTextFormat,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceTextFormat(swUserPreferenceTextFormat_e.swDetailingDetailView_DelimiterTextFormat,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
See ITextFormat
for font options |
To set font property values, implement ITextFormat, set the appropriate
ITextFormat member values, and pass the ITextFormat object in the API
set method |
|
Label options - Remove space in scale around colon (:) and slash (/) |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailView_RemoveSpaceInScale,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailView_RemoveSpaceInScale,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
Boolean value |
Specifies whether to remove spaces around the delimiter in the scale
text |
|
Stacked or In-line |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_Stacked,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_Stacked,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
Boolean value |
|
If... |
Then display the detail view name and scale
in... |
|
True |
2 lines |
|
False |
1 line |
|
|
Display label above view |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_AboveView,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_AboveView,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
Boolean value |
Specifies whether to show label above detail view |
Include location labels for new views |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailView_IncludeLocationLabelsForNewViews,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailView_IncludeLocationLabelsForNewViews,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
Boolean value |
Specifies whether to include location labels for new detail views |
|
Scale by view scale for Jagged outline |
IModelDocExtension::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_ScaleForJaggedOutline,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDetailingDetailViewLabels_ScaleForJaggedOutline,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
Boolean value |
Specifies whether to scale the Jagged outline using the view scale |
|
Layer |
IModelDocExtension::GetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingDetailView)
IModelDocExtension::SetUserPreferenceString(swUserPreferenceStringValue_e.swDetailingLayer,
swUserPreferenceOption_e.swDetailingDetailView, <Value>) |
Valid Options:
"Border" "Dimensions" "Notes" "BOM" "FORMAT" |
This setting is available only on drawings; depending on drawing, some
options may not apply |
