System Options > Export > 3MF

This topic contains two tables. The information in the table:

  • appearing immediately after the dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.

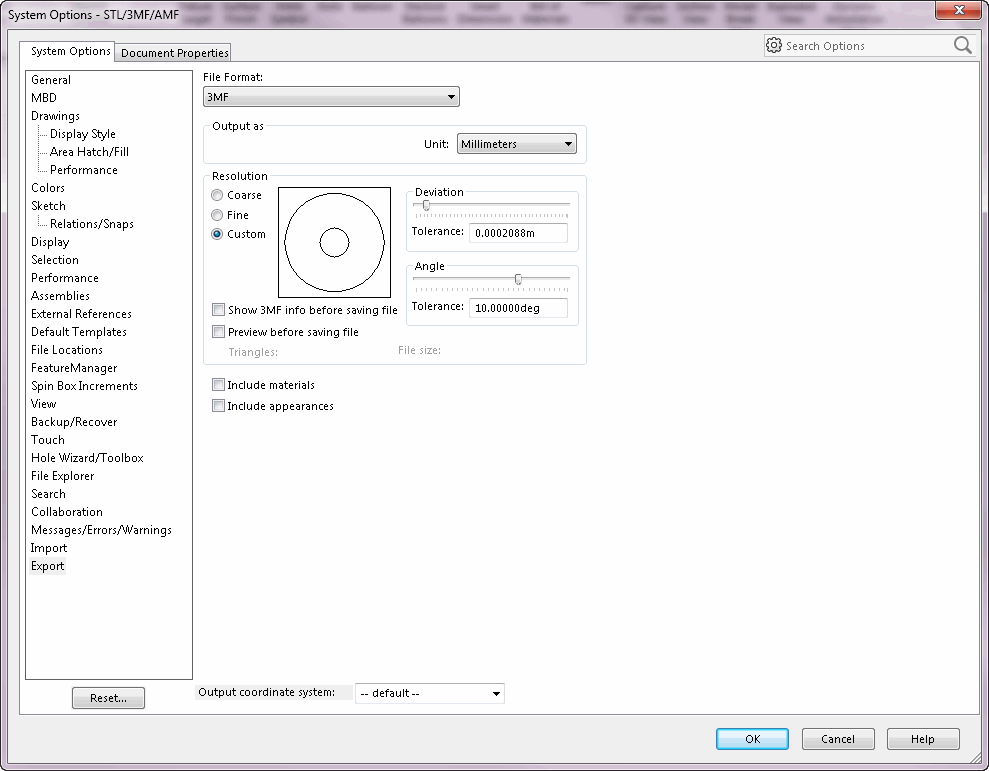

To display the dialog:

Click Tools > Options > System Options > Export > 3MF in File Format.

- or -

  1. Click File > Save As.
  2. In Save as type, select 3D Manufacturing Format.
  3. Click Options.





Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Output as - Unit

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportStlUnits)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swExportStlUnits, swLengthUnit_e.<Value>)

Valid options as defined in swLengthUnit_e:

  • 0 = swMM (millimeters)

  • 1 = swCM (centimeters)

  • 2 = swMETER

  • 3 = swINCHES

  • 4 = swFEET



Resolution -

  • Coarse
  • Fine
  • Custom

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSTLQuality)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSTLQuality, swSTLQuality_e.<Value>)

See swSTLQuality_e for valid options

Specifies the resolution of the output for 3D manufacturing files

Resolution - Deviation - Tolerance

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLDeviation)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLDeviation, <Value>)

Double value

Specifies the deviation tolerance, which controls whole-part tessellation; lower numbers generate files with greater whole-part accuracy

Resolution - Angle - Tolerance

ISldWorks::GetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLAngleTolerance)

ISldWorks::SetUserPreferenceDoubleValue(swUserPreferenceDoubleValue_e.swSTLAngleTolerance, <Value>)

Double value

Specifies the angle tolerance, which controls smaller detail tessellation; lower numbers generate files with greater small-detail accuracy, but those files take longer to generate

Resolution - Show 3MF info before saving file

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFShowInfoOnSave)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFShowInfoOnSave, <OnFlag>)

Boolean value

Specifies whether to show 3MF info before saving the file

Resolution - Preview before saving file

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, swSTLPreview)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, swSTLPreview, <OnFlag>)

Boolean value

Specifies whether a faceted model preview is displayed in the graphics area

Include materials

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFMaterials)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFMaterials, <OnFlag>)

Boolean value

Specifies whether to include materials

Include appearances

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFAppearances)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e, sw3MFAppearances, <OnFlag>)

Boolean value

Specifies whether to include appearances

Output coordinate system

ISldWorks::GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swExportOutputCoordinateSystem)

ISldWorks::SetUserPreferenceStringValue(swUserPreferenceStringValue_e.swExportOutputCoordinateSystem, <Value>)

String value



Obsolete Enumerators

Enumerator

Comment

swFileSaveAsCoordinateSystem

Obsolete
