System Options > Colors

This topic contains two tables. The information in the table:

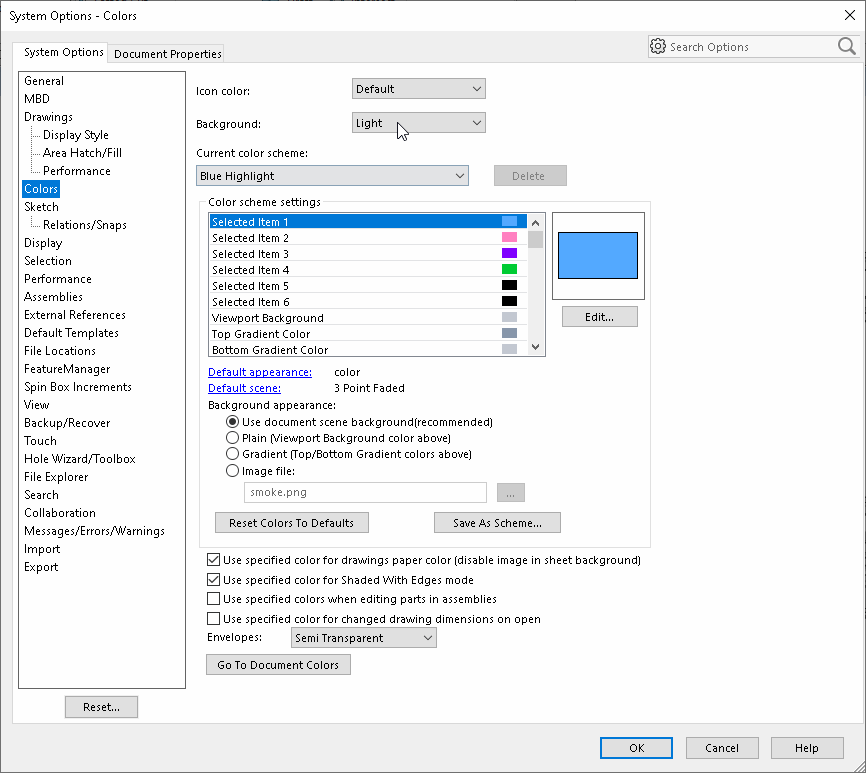

  • appearing immediately after the screen capture of the dialog corresponds to the settings on that dialog.
  • titled Obsolete Enumerators contains enumerators that previously appeared on the dialog but are now obsolete.



NOTE: The input or output value is the corresponding IColorTable value unless otherwise specified.



Setting

Get/Set Methods

Return Value
or
<Value>
or
<OnFlag>

Comment

Icon color

(Not supported in SOLIDWORKS Connected)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsIconColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsIconColor, swSystemColorsIconColor_e.<Value>)

See swSystemColorsIconColor_e for valid options



Background

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsBackground)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsBackground, swInterfaceBrightnessTheme_e.<Value>)

See swInterfaceBrightnessTheme_e for valid options



Current color scheme

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsCurrentColorScheme)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsCurrentColorScheme, swSystemColorsCurrentColorScheme_e.<Value>)

See swSystemColorsCurrentColorScheme_e for valid options



Color scheme settings - Viewport Background

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsViewportBackground)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsViewportBackground, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Top Gradient Color

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsTopGradientColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsTopGradientColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Bottom Gradient Color

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsBottomGradientColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsBottomGradientColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Dynamic Highlight

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDynamicHighlight)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDynamicHighlight, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Highlight

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsHighlight)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsHighlight, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Selected Item 1

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem1)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem1, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Selected Item 2

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem2)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem2, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Selected Item 3

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem3)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem3, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Selected Item 4

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem4)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem4, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Selected Item 5

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem5)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem5, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Selected Item 6

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem6)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedItem6, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color Scheme settings - Measure Highlight

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsMeasureSelection)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsMeasureSelection, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Selected Item Missing Reference

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsGhostSelColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsGhostSelColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Selected Face, Shaded

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedFaceShaded)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSelectedFaceShaded, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Drawings, Paper Color

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsPaper)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsPaper, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable; sheet color

Color scheme settings - Drawings, Background

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsBackground)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsBackground, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable; drawing background color

Color scheme settings - Drawings, Visible Model Edges

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsVisibleModelEdge)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsVisibleModelEdge, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Drawings, Hidden Model Edges

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsHiddenModelEdge)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsHiddenModelEdge, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Drawings, Model Edges (SpeedPak)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsSpeedPakModelEdge)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsSpeedPakModelEdge, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Drawings, Model Tangent Edges

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsModelTangentEdges)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsModelTangentEdges, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Drawings, Changed dimensions

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsChangedDimensions)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDrawingsChangedDimensions, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Drawings, Modified Cells (BOM)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swBomOverriddenCellValueColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swBomOverriddenCellValueColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Dimensions, Imported (Driving)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsImportedDrivingAnnotation)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsImportedDrivingAnnotation, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Dimensions, Non Imported (Driven)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsImportedDrivenAnnotation)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsImportedDrivenAnnotation, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Dimensions, Dangling

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDanglingDimension)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDanglingDimension, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Dimensions, Not Marked for Drawing

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDimsNotMarkedForDrawing)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDimsNotMarkedForDrawing, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Dimensions, Controlled by Design Table

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDTDim)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsDTDim, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Graphical Annotations

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swGraphicalAnnotationsColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swGraphicalAnnotationsColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Text

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsText)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsText, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Sketch, Over Defined

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchOverDefined)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchOverDefined, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Sketch, Fully Defined

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchFullyDefined)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchFullyDefined, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Sketch, Under Defined

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchUnderDefined)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchUnderDefined, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Sketch, Invalid Geometry

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchInvalidGeometry)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchInvalidGeometry, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Sketch, Not Solved

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchNotSolved)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchNotSolved, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Sketch, Inactive

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchInactive)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSketchInactive, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Sketch, Shaded Contours

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swShadedSketchContourColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swShadedSketchContourColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Sketch, Exploded

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSketchExplodedColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSketchExplodedColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Grid Lines, Minor

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsGridLinesMinor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsGridLinesMinor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Grid Lines, Major

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsGridLinesMajor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsGridLinesMajor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Construction Geometry

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsConstructionGeometry)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsConstructionGeometry, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly, Edit Part

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsAssemblyEditPart)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsAssemblyEditPart, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly, Hidden Lines of Edit Part

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsAssemblyEditPartHiddenLines)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsAssemblyEditPartHiddenLines, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly, Non-Edit Parts

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsAssemblyNonEditPart)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsAssemblyNonEditPart, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Inactive Entities

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsInactiveEntity)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsInactiveEntity, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Inactive Handles

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsInactiveHandles)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsInactiveHandles, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Temporary Graphics

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsTemporaryGraphics)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsTemporaryGraphics, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Temporary Graphics, Shaded

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsTemporaryGraphicsShaded)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsTemporaryGraphicsShaded, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Temporary Graphics - Add Material

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTempGraphicsAddMaterialColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTempGraphicsAddMaterialColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Temporary Graphics - Remove Material

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTempGraphicsRemoveMaterialColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swTempGraphicsRemoveMaterialColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Sheet Metal Temporary Graphics color

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSheetMetalTemporaryGraphics)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSheetMetalTemporaryGraphics, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Surfaces, Open Edges

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSurfacesOpenEdge)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSurfacesOpenEdge, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Edges in Shaded With Edges Mode

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsShadedEdge)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsShadedEdge, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - FeatureManager Design Tree Text

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsTreeItemNormal)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsTreeItemNormal, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Flyout FeatureManager Design Tree Text

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swGraphicsTreeItemNormalColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swGraphicsTreeItemNormalColor, <Value>)



Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Annotations, Imported

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsImportedAnnotation)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsImportedAnnotation, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Annotations, Non Imported

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsNonImportedAnnotation)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsNonImportedAnnotation, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly Interference Volume

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsAsmInterferenceVolume)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsAsmInterferenceVolume, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Hidden Edge Selection Show Color

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsHiddenEdgeSelectionShow)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsHiddenEdgeSelectionShow, <Value>)

Integer value

Read-only COLORREF value in SOLIDWORKS IColorTable; although it appears that you have set it, the SOLIDWORKS software ignores your setting

Color scheme settings - Mate Callout, Healthy

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsMateCalloutHealthy)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsMateCalloutHealthy, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Mate Callout, Warning

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsMateCalloutWarning)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsMateCalloutWarning, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings -Mate Callout, Error

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsMateCalloutError)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsMateCalloutError, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Envelope Components

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swEnvelopeComponentColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swEnvelopeComponentColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly Visualization First

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor1)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.sswAssemblyVisualizationComponentColor1, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly Visualization Second

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor2)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor2, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly Visualization Third

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor3)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor3, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly Visualization Fourth

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor4)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor4, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly Visualization Fifth

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor5)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor5, <Value>)

Integer value

 COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Assembly Visualization Sixth

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor6)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swAssemblyVisualizationComponentColor6, <Value>)

Integer value

 COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Manipulator connection point color

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swManipConnectionPointColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swManipConnectionPointColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Annotations, DimXpert

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSwiftAnnotations)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSwiftAnnotations, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - DimXpert, Under Constrained

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSwiftUnderConstrained)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSwiftUnderConstrained, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - DimXpert, Fully Constrained

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSwiftFullyConstrained)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSwiftFullyConstrained, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - DimXpert, Over Constrained

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSwiftOverConstrained)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsSwiftOverConstrained, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Annotations, TolAnalyst Dimension

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsToleranceAnalysisDim)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsToleranceAnalysisDim, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Zone row/column lines

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swZoneLineColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swZoneLineColor, <Value>)



Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Dynamic Reference Visualization (Parent)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swRefVisualizationParentColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swRefVisualizationParentColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Dynamic Reference Visualization (Child)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swRefVisualizationChildrenColor)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swRefVisualizationChildrenColor, <Value>)

Integer value

COLORREF value in SOLIDWORKS IColorTable

Color scheme settings - Background appearance:  Use document scene background

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swColorsBackgroundAppearance)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swColorsBackgroundAppearance, swColorsBackgroundAppearance_e.swColorsBackgroundAppearance_DocumentScene)

See swColorsBackgroundAppearance_e for valid options



Color scheme settings - Background appearance:  Plain (Viewport Background color above)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swColorsBackgroundAppearance)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swColorsBackgroundAppearance, swColorsBackgroundAppearance_e.swColorsBackgroundAppearance_Plain)

See swColorsBackgroundAppearance_e for valid options



Color scheme settings - Background appearance:  Gradient (Top/Bottom Gradient colors above)

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swColorsBackgroundAppearance)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swColorsBackgroundAppearance, swColorsBackgroundAppearance_e.swColorsBackgroundAppearance_Gradient)

See swColorsBackgroundAppearance_e for valid options



Color scheme settings - Background appearance: Image File

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swColorsBackgroundAppearance)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swColorsBackgroundAppearance, swColorsBackgroundAppearance_e.swColorsBackgroundAppearance_Image)



and

ISldWorks::GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swColorsBackgroundImageFile)

ISldWorks::GetUserPreferenceStringValue(swUserPreferenceStringValue_e.swColorsBackgroundImageFile, <Value>)

Integer value:

See swColorsBackgroundAppearance_e for valid options

String value:

Path and file name of the file to use as the background for the SOLIDWORKS graphics window

NOTE: If you omit the path, then the default image folder in the SOLIDWORKS install folder is assumed:

\data\Images\textures\background

You can also use ISldWorks::GetDataFolder to get the data folder



Use specified color for drawings paper color

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetBackgroundAsPicture)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swDrawingSheetBackgroundAsPicture, <OnFlag>)

Boolean value



Use specified color for Shaded With Edges mode

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swColorsUseShadedEdgeColor)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swColorsUseShadedEdgeColor, <OnFlag>)

Boolean value

Specifies whether to use specified colors for Shaded With Edges mode

Use specified colors when editing parts in assemblies

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swColorsUseSpecifiedEditColors)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swColorsUseSpecifiedEditColors, <OnFlag>)

Boolean value

Specifies whether to use specified colors when editing assemblies

Use specified color for changed drawing dimensions on open

ISldWorks::GetUserPreferenceToggle(swUserPreferenceToggle_e.swUseChangedDimensions)

ISldWorks::SetUserPreferenceToggle(swUserPreferenceToggle_e.swUseChangedDimensions, <OnFlag>)



Boolean value

Specifies whether to highlight changed dimensions in a  specified color after a drawing document is opened

Envelopes

ISldWorks::GetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsEnvelopes)

ISldWorks::SetUserPreferenceIntegerValue(swUserPreferenceIntegerValue_e.swSystemColorsEnvelopes, swSystemColorsEnvelopes_e.<Value>)

See swSystemColorsEnvelopes_e for valid options





Obsolete Enumerators

Enumerator

Comment

swColorsGradientPartBackground

Obsolete; used swColorsBackgroundAppearance_e

swColorsMatchViewAndFeatureManagerBackground

Obsolete

swSystemColorsDrawingsPaperBorder

Obsolete

swSystemColorsDrawingsPaperShadow

Obsolete

swSystemColorsPropertyManagerColor

Obsolete; used swPropertyManagerColorScheme_e

swSystemColorsRefTriadX

Obsolete

swSystemColorsRefTriadY

Obsolete

swSystemColorsRefTriadZ

Obsolete

swSystemColorsTreeItemSelected

Obsolete





Provide feedback on this topic

SOLIDWORKS welcomes your feedback concerning the presentation, accuracy, and thoroughness of the documentation. Use the form below to send your comments and suggestions about this topic directly to our documentation team. The documentation team cannot answer technical support questions. Click here for information about technical support.

* Required


*Email:
Subject:   Feedback on Help Topics
Page:   System Options > Colors
*Comment:
*   I acknowledge I have read and I hereby accept the privacy policy under which my Personal Data will be used by Dassault Systèmes

Print Topic

Select the scope of content to print:

x

We have detected you are using a browser version older than Internet Explorer 7. For optimized display, we suggest upgrading your browser to Internet Explorer 7 or newer.

 Never show this message again
x

Web Help Content Version: API Help (English only) 2023 SP05

To disable Web help from within SOLIDWORKS and use local help instead, click Help > Use SOLIDWORKS Web Help.

To report problems encountered with the Web help interface and search, contact your local support representative. To provide feedback on individual help topics, use the “Feedback on this topic” link on the individual topic page.

0.20.46
