Align Collinear/Radial Dimensions In a drawing view, aligns and groups selected linear, radial, or angular drawing dimensions. The selected dimensions must be of the same type and have a common direction (linear dimensions) or a common centerpoint (angular dimensions). Parent topicAligning Dimensions and Notes Align Toolbar Align Parallel/Concentric Dimensions Aligning and Grouping Collinear Dimensions To align and group dimensions to be collinear: In a drawing view, select a group of dimensions. Click Align Collinear/Radial on the Align toolbar, or click Tools > Dimensions > Align Collinear/Radial . The selected dimensions are arranged in a straight line. They also are grouped, and retain the linear arrangement when moved. The dimensions align to the last selected dimension. Aligned collinearly Aligned radially Highlighting Dimensions that Are Aligned to One Another To highlight dimensions that are aligned to one another: Right-click a dimension that was created with Align Collinear/Radial and click Show Alignment. Dimensions that are aligned are marked with blue dots. Removing Dimensions from a Set of Aligned Dimensions To remove a dimension from a set of aligned dimensions: Right-click a dimension that was created with Align Collinear/Radial and click Break Alignment.
Align Collinear/Radial Dimensions In a drawing view, aligns and groups selected linear, radial, or angular drawing dimensions. The selected dimensions must be of the same type and have a common direction (linear dimensions) or a common centerpoint (angular dimensions). Parent topicAligning Dimensions and Notes Align Toolbar Align Parallel/Concentric Dimensions Aligning and Grouping Collinear Dimensions To align and group dimensions to be collinear: In a drawing view, select a group of dimensions. Click Align Collinear/Radial on the Align toolbar, or click Tools > Dimensions > Align Collinear/Radial . The selected dimensions are arranged in a straight line. They also are grouped, and retain the linear arrangement when moved. The dimensions align to the last selected dimension. Aligned collinearly Aligned radially Highlighting Dimensions that Are Aligned to One Another To highlight dimensions that are aligned to one another: Right-click a dimension that was created with Align Collinear/Radial and click Show Alignment. Dimensions that are aligned are marked with blue dots. Removing Dimensions from a Set of Aligned Dimensions To remove a dimension from a set of aligned dimensions: Right-click a dimension that was created with Align Collinear/Radial and click Break Alignment.
Aligning and Grouping Collinear Dimensions To align and group dimensions to be collinear: In a drawing view, select a group of dimensions. Click Align Collinear/Radial on the Align toolbar, or click Tools > Dimensions > Align Collinear/Radial . The selected dimensions are arranged in a straight line. They also are grouped, and retain the linear arrangement when moved. The dimensions align to the last selected dimension. Aligned collinearly Aligned radially

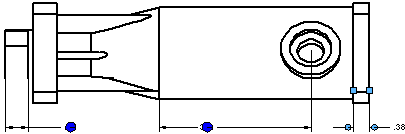

Highlighting Dimensions that Are Aligned to One Another To highlight dimensions that are aligned to one another: Right-click a dimension that was created with Align Collinear/Radial and click Show Alignment. Dimensions that are aligned are marked with blue dots.
Removing Dimensions from a Set of Aligned Dimensions To remove a dimension from a set of aligned dimensions: Right-click a dimension that was created with Align Collinear/Radial and click Break Alignment.
