Bend Tables

You can insert a bend table in the flat pattern view of sheet metal parts in drawings.

Bend tables provide information about the bends in the sheet metal body including:
  • Tags
  • Directions
  • Angles
  • Inner radii
You can use bend tables or bend notes, but not both.

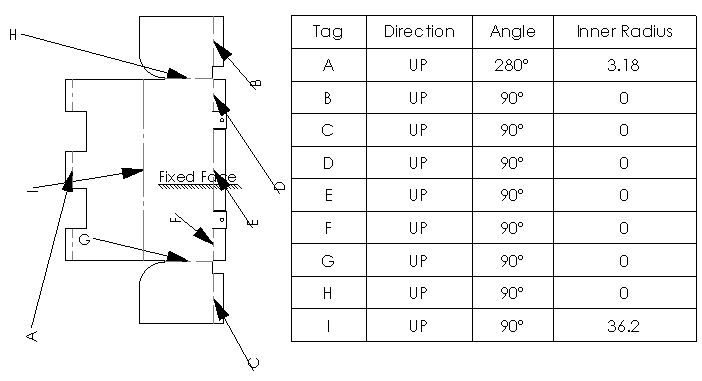

Bend Table

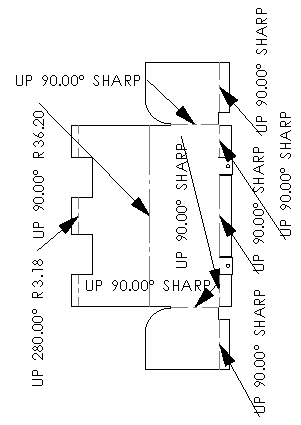

Bend Notes
