When To Use a Boundary

A boundary spans two or more profiles in one or two directions. A boundary can be a base, boss, cut, or surface.

Boundaries follow the profiles specified in Direction 1 (blue) and Direction 2 (purple).

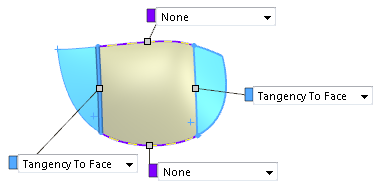

The Boundary Surface feature can create surfaces that span the extents of Direction 1 and Direction 2

A Boundary Surface can be used instead of a Filled Surface for a more controllable transition between faces.

A Boundary Cut is created in the same way as a Boundary Boss/Base, but the volume of the feature is removed.
