Examples of Scaling

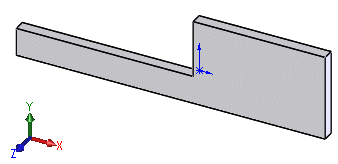

Original part. No scale applied. Material is on one side of the X axis only.	Scaled about Origin with a scale factor of 3 applied to X axis. The model scales to the right side only of the X axis.


Original part. No scale applied. Material is on both sides of the X axis.	Scaled about Origin with a scale factor of 3 applied to the X axis. Model scales about the origin in both directions along the X axis.

Search 'Examples of Scaling' in the SOLIDWORKS Knowledge Base.
