Show Component Configuration Names

You can display component configuration names in the FeatureManager design tree.

To show component configuration names:

  1. At the top of the FeatureManager design tree, right-click the part, assembly, or drawing name, and select Tree Display > Component Name and Description.
    You can specify display options for component names and descriptions at the document level or the system level. When using the system level settings, you cannot change the settings at the document level.

    To specify options at the system level, click Tools > Options > System Options > FeatureManager and select Override document level tree display. Click Component Name and Description to open the dialog box.

    When you select Override document level tree display, the options in the Component Name and Description dialog box are disabled at the document level.

  2. In the dialog box, select Configuration Name.

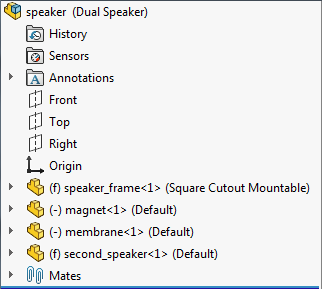

    The FeatureManager design tree displays the component configuration names.
