Using Rapid Sketch

Rapid Sketch allows you to select planar faces or planes, and with any sketch tool active, start to sketch. As you move to each planar face, the software creates a plane and opens a sketch. You can change sketch tools midstream.

To use Rapid Sketch:

  1. With a model open, select the Sketch tab and click Rapid Sketch or Rapid Sketch (Sketch toolbar).
  2. Select a sketch tool.

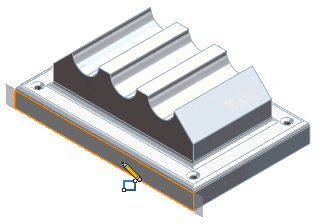

  3. Place the pointer on a planar face or plane and start to sketch.
